دیتاشیت AD5611AKSZ-500RL7

AD5601,11,21

مشخصات دیتاشیت

نام دیتاشیت AD5601,11,21
حجم فایل 631.327 کیلوبایت
نوع فایل pdf
تعداد صفحات 21

دانلود دیتاشیت AD5601,11,21

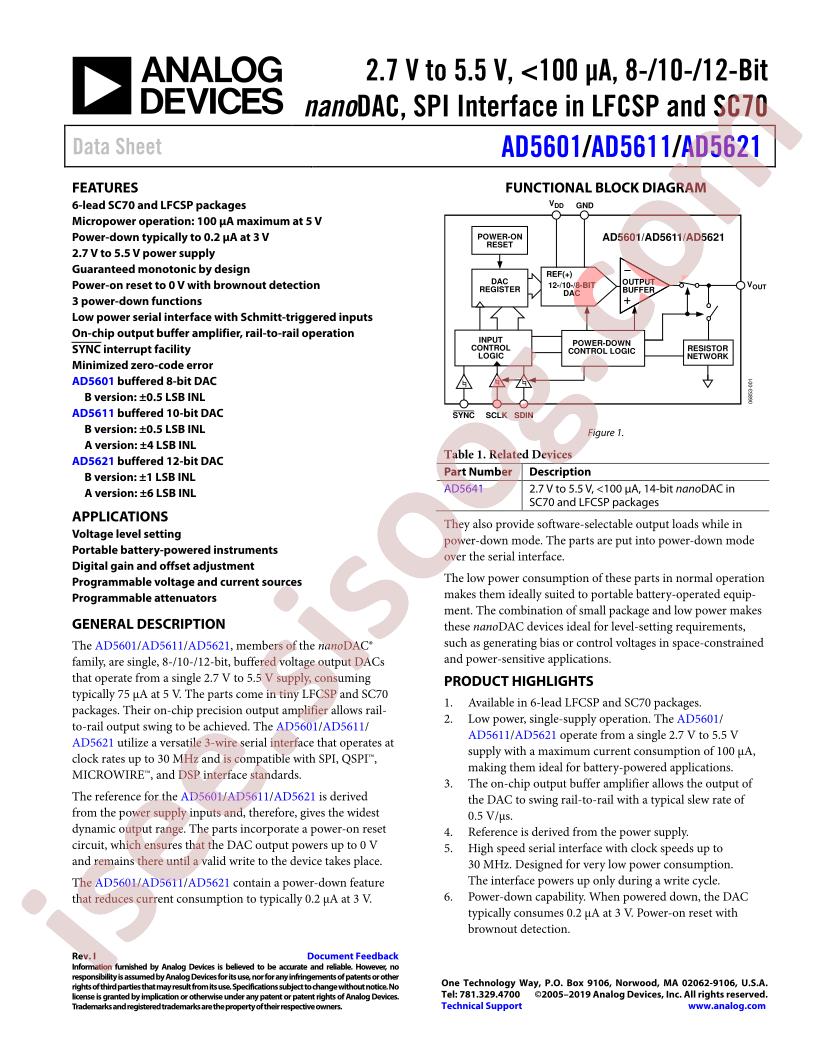

AD5601,11,21 Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Analog Devices AD5611AKSZ-500RL7
  • Interface: SPI;DSP
  • Resolution: 10Bit
  • Output Type: Voltage-缓冲
  • Settling Time: 10us
  • Supply Voltage: 2.7V~5.5V
  • Integral nonlinearity: ±4LSB;±0.5LSB
  • Operating Temperature: -40°C~+125°C
  • Package: SC-70-6
  • Manufacturer: Analog Devices
  • Series: nanoDAC®
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Number of Bits: 10
  • Number of D/A Converters: 1
  • Differential Output: No
  • Data Interface: SPI, DSP
  • Reference Type: Supply
  • Voltage - Supply, Analog: 2.7V ~ 5.5V
  • Voltage - Supply, Digital: 2.7V ~ 5.5V
  • INL/DNL (LSB): ±4 (Max), ±0.5 (Max)
  • Architecture: String DAC
  • Package / Case: 6-TSSOP, SC-88, SOT-363
  • Supplier Device Package: SC-70-6
  • Mounting Type: Surface Mount
  • Base Part Number: AD5611
  • detail: 10 Bit Digital to Analog Converter 1 SC-70-6
