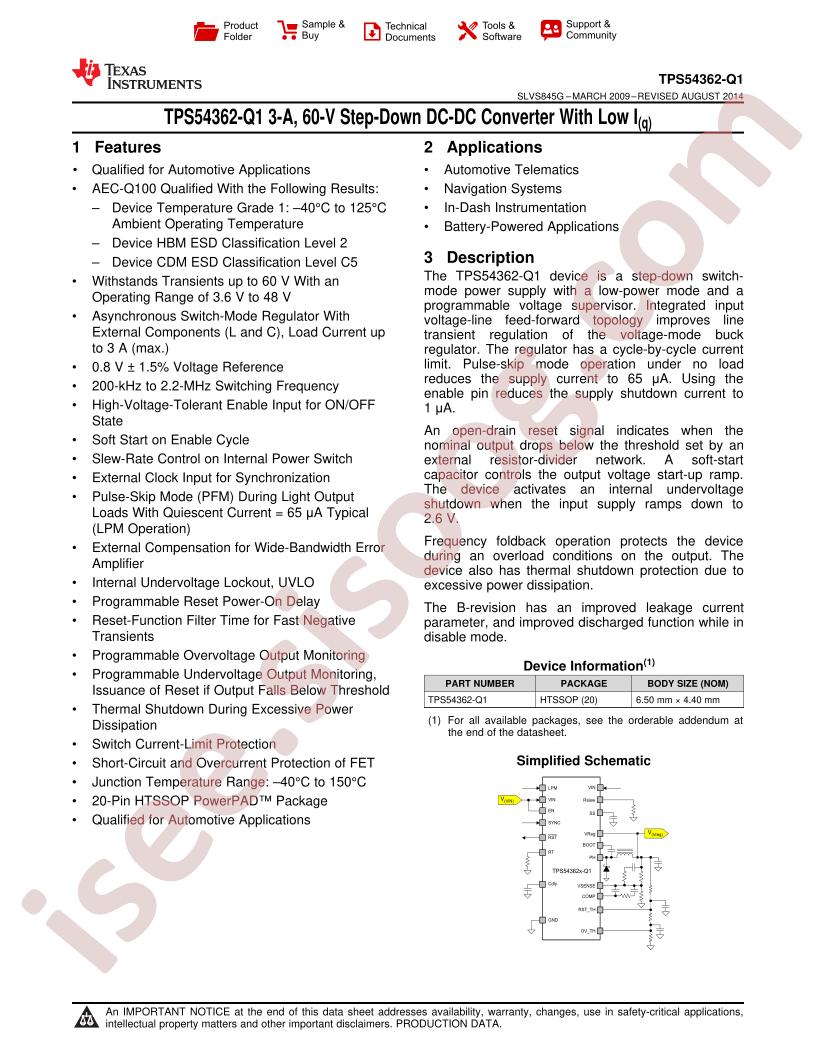

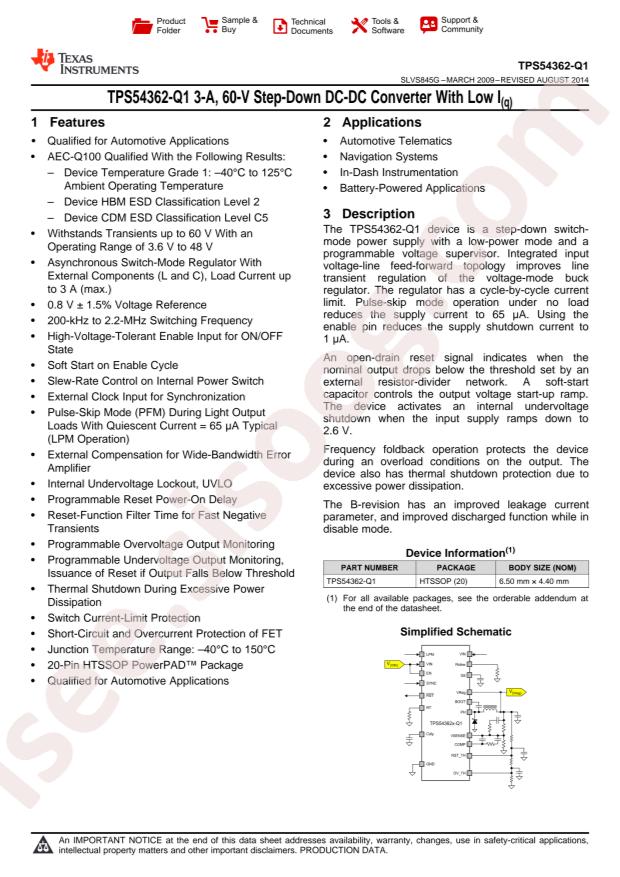

دیتاشیت TPS54362BQPWPRQ1
مشخصات دیتاشیت
| نام دیتاشیت |
TPS54362-Q1
|
| حجم فایل |
1547.146
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
40
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:
Texas Instruments TPS54362BQPWPRQ1
-
Output Type:
Adjustable
-
Input Voltage:
3.6V~48V
-
Output Voltage:
0.9V~18V
-
Number of Outputs:
1
-
Switching Frequency:
2.2MHz
-
Output Current (Max):
3A
-
Operating Temperature:
-40°C~+150°C@(TJ)
-
Synchronous Rectification:
NO
-
Package:
TSSOP-20-EP
-
Manufacturer:
Texas Instruments
-
Series:
Automotive, AEC-Q100
-
Voltage - Input (Min):
3.6V
-
Base Part Number:
TPS543
-
Current - Output:
3A
-
Frequency - Switching:
200kHz ~ 2.2MHz
-
Part Status:
Active
-
Voltage - Input (Max):
48V
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
20-HTSSOP
-
Voltage - Output (Min/Fixed):
0.9V
-
Package / Case:
20-PowerTSSOP (0.173", 4.40mm Width)
-
Voltage - Output (Max):
18V
-
Packaging:
Digi-Reel®
-
Output Configuration:
Positive
-
Synchronous Rectifier:
No
-
detail:
Buck Switching Regulator IC Positive Adjustable 0.9V 1 Output 3A 20-PowerTSSOP (0.173", 4.40mm Width)
