دیتاشیت DAC8412FPCZ-REEL

DAC8412,13

مشخصات دیتاشیت

نام دیتاشیت DAC8412,13
حجم فایل 483.926 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

دانلود دیتاشیت DAC8412,13

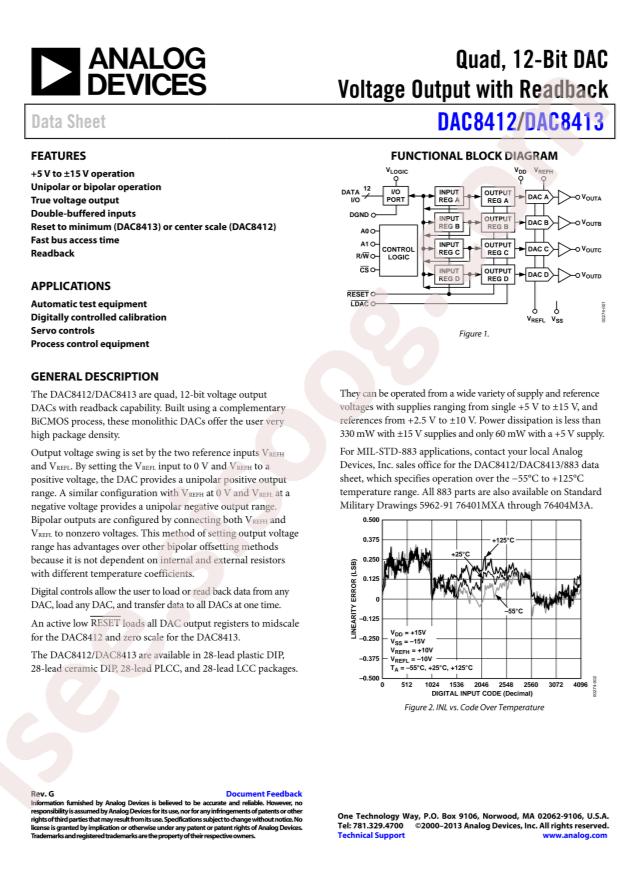

DAC8412,13 Datasheet

مشخصات

  • Manufacturer: Analog Devices Inc.
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Number of Bits: 12
  • Number of D/A Converters: 4
  • Settling Time: 10µs (Typ)
  • Output Type: Voltage - Buffered
  • Differential Output: No
  • Data Interface: Parallel
  • Reference Type: External
  • Voltage - Supply, Analog: 5V ~ 15V, -15V
  • Voltage - Supply, Digital: 5V
  • INL/DNL (LSB): ±2 (Max), -1
  • Architecture: R-2R
  • Operating Temperature: -40°C ~ 85°C
  • Package / Case: 28-LCC (J-Lead)
  • Supplier Device Package: 28-PLCC (11.51x11.51)
  • Mounting Type: Surface Mount
  • Base Part Number: DAC8412
  • detail: 12 Bit Digital to Analog Converter 4 28-PLCC (11.51x11.51)
