CSD95491Q5MC دیتاشیت

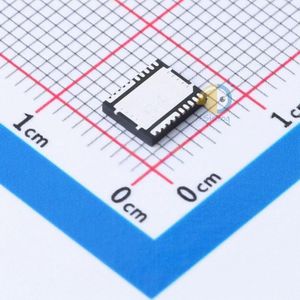

CSD95491Q5MC

مشخصات دیتاشیت

نام دیتاشیت CSD95491Q5MC
حجم فایل 101.038 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

مشاهده دیتاشیت CSD95491Q5MC

دانلود دیتاشیت

سایر مستندات

CSD95491Q5MC 14 pages

مشخصات فنی

  • RoHS: true
  • Feature: -
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Texas Instruments CSD95491Q5MC
  • Supply Voltage: 4.5V~5.5V
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Package: VSON-12-EP(5x6)
  • Manufacturer: Texas Instruments
  • Series: NexFET™
  • Rds On (Typ): -
  • Technology: Power MOSFET
  • Base Part Number: CSD9549
  • Supplier Device Package: 12-VSON-CLIP (5x6)
  • Package / Case: 12-PowerTFDFN
  • Fault Protection: Shoot-Through
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Load Type: Inductive, Capacitive
  • Applications: Synchronous Buck Converters
  • Voltage - Load: 4.5V ~ 16V
  • Current - Peak Output: 90A
  • Voltage - Supply: 4.5V ~ 5.5V
  • Features: Bootstrap Circuit
  • Packaging: Cut Tape (CT)
  • Output Configuration: Half Bridge (3)
  • Interface: PWM
  • Current - Output / Channel: 60A
  • detail: Half Bridge (3) Driver Synchronous Buck Converters Power MOSFET 12-VSON-CLIP (5x6)
