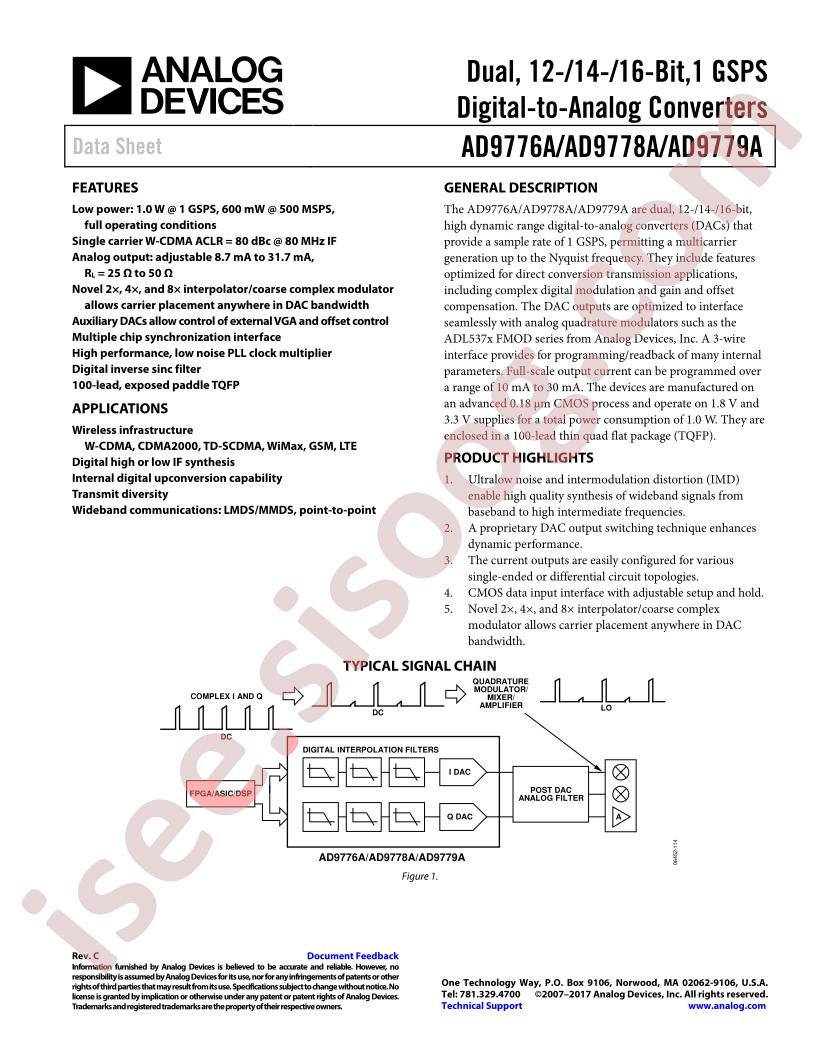

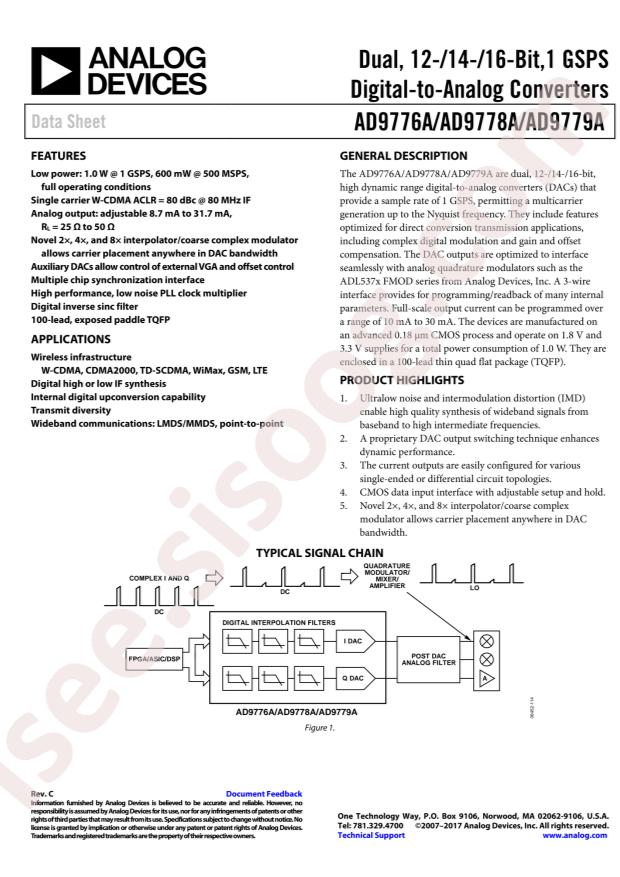

دیتاشیت AD9776ABSVZ

AD9776A,78A,79A

مشخصات دیتاشیت

نام دیتاشیت AD9776A,78A,79A
حجم فایل 1071.557 کیلوبایت
نوع فایل pdf
تعداد صفحات 55

دانلود دیتاشیت AD9776A,78A,79A

AD9776A,78A,79A Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Analog Devices AD9776ABSVZ
  • Interface: Parallel
  • Resolution: 12Bit
  • Output Type: Current-非缓冲
  • Supply Voltage: 1.7V~2.05V;3.13V~3.47V
  • Integral nonlinearity: ±0.86LSB;±0.1LSB
  • Operating Temperature: -40°C~+85°C
  • Package: TQFP-100-EP(14x14)
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tray
  • Part Status: Active
  • Number of Bits: 12
  • Number of D/A Converters: 2
  • Settling Time: -
  • Differential Output: Yes
  • Data Interface: Parallel
  • Reference Type: Internal
  • Voltage - Supply, Analog: 3.13V ~ 3.47V
  • Voltage - Supply, Digital: 1.7V ~ 2.05V, 3.13V ~ 3.47V
  • INL/DNL (LSB): ±0.86, ±0.1
  • Architecture: Oversampling Interpolating DAC
  • Package / Case: 100-TQFP Exposed Pad
  • Supplier Device Package: 100-TQFP-EP (14x14)
  • Mounting Type: Surface Mount
  • Base Part Number: AD9776
  • detail: 12 Bit Digital to Analog Converter 2 100-TQFP-EP (14x14)
