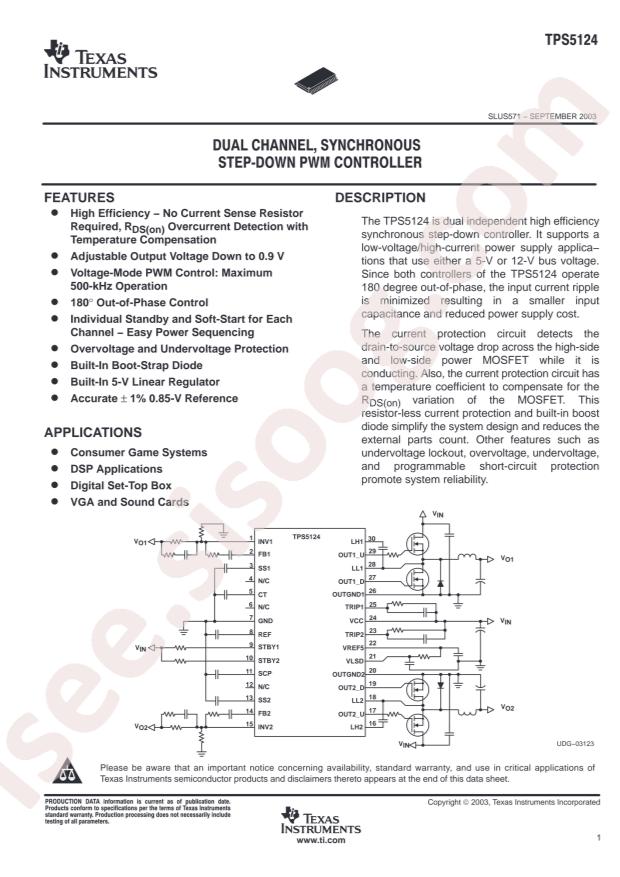

TPS5124DBTRG4 دیتاشیت

TPS5124DBTRG4

مشخصات دیتاشیت

نام دیتاشیت TPS5124DBTRG4
حجم فایل 88.35 کیلوبایت
نوع فایل pdf
تعداد صفحات 23

دانلود دیتاشیت TPS5124DBTRG4

دانلود دیتاشیت

سایر مستندات

TPS5124 20 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/DC-DC Controllers
  • Function: Step-down type
  • Topology: Step-down
  • Datasheet: Texas Instruments TPS5124DBTRG4
  • Input Voltage: 4.5V~15V
  • Duty Cycle (Max): 80%
  • Number of Outputs: 2
  • Switching Frequency: 300kHz
  • Operating Temperature: -40°C~+85°C@(TA)
  • Synchronous Rectification: Yes
  • Package: TSSOP-30-4.4mm
  • Manufacturer: Texas Instruments
  • Voltage - Supply (Vcc/Vdd): 4.5V ~ 15V
  • Base Part Number: TPS512
  • Package / Case: 30-TFSOP (0.173", 4.40mm Width)
  • Output Configuration: Positive
  • Series: -
  • Supplier Device Package: 30-TSSOP
  • Frequency - Switching: 300kHz
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Control Features: Enable, Power Good
  • Clock Sync: No
  • Serial Interfaces: -
  • Packaging: Cut Tape (CT)
  • Synchronous Rectifier: Yes
  • Output Type: Transistor Driver
  • Output Phases: 2
  • detail: Buck Regulator Positive Output Step-Down DC-DC Controller IC 30-TSSOP
