CSD95481RWJ دیتاشیت

CSD95481RWJ

مشخصات دیتاشیت

نام دیتاشیت CSD95481RWJ
حجم فایل 98.563 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

مشاهده دیتاشیت CSD95481RWJ

دانلود دیتاشیت

سایر مستندات

CSD95481RWJ Datasheet 15 pages

مشخصات فنی

  • RoHS: true
  • Feature: -
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Texas Instruments CSD95481RWJ
  • Load Type: MOSFET
  • Supply Voltage: 4.5V~5.5V
  • Driven Configuration: Half Bridge
  • Operating Temperature: -40°C~+125°C@(Tj)

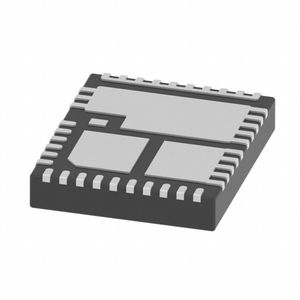

  • Package: VQFN-41-CLIP(5x6)
  • Manufacturer: Texas Instruments
  • Series: NexFET™
  • Rds On (Typ): -
  • Technology: Power MOSFET
  • Base Part Number: CSD9548
  • Supplier Device Package: 41-VQFN-CLIP (5x6)
  • Package / Case: 41-PowerTFQFN
  • Fault Protection: Shoot-Through
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Applications: Synchronous Buck Converters
  • Voltage - Load: 4.5V ~ 16V
  • Current - Peak Output: 90A
  • Voltage - Supply: 4.5V ~ 5.5V
  • Features: Bootstrap Circuit
  • Packaging: Cut Tape (CT)
  • Output Configuration: Half Bridge (3)
  • Interface: PWM
  • Current - Output / Channel: 60A
  • detail: Half Bridge (3) Driver Synchronous Buck Converters Power MOSFET 41-VQFN-CLIP (5x6)
