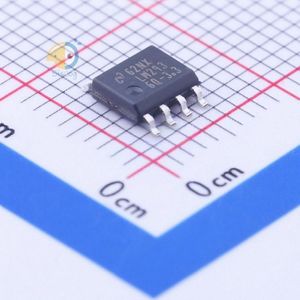

دیتاشیت LM2936QM-3.3/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LM2936Q |
|---|---|
| حجم فایل | 1441.958 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 34 |
دانلود دیتاشیت LM2936Q |

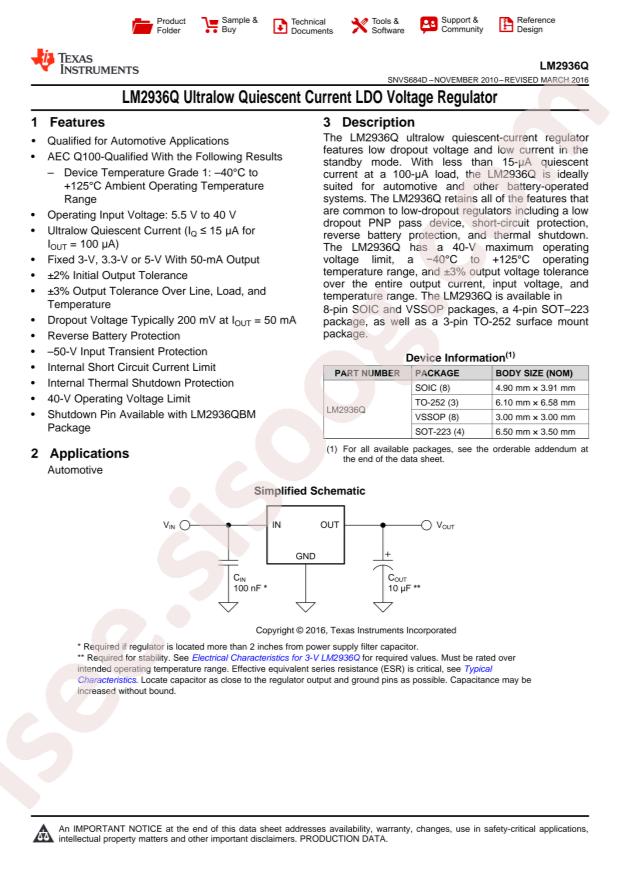

LM2936Q Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments LM2936QM-3.3/NOPB
- Output Type: Fixed
- Output Current: 50mA
- Output Voltage: 3.3V
- Dropout Voltage: 200mV@(50mA)
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 40V
- Operating Temperature: -40°C~+125°C@(Tj)
- Quiescent Current (Ground Current): 15uA
- Power Supply Rejection Ratio (PSRR): 60dB@(120Hz)
- Package: SOP-8
- Manufacturer: Texas Instruments
- Voltage Dropout (Max): 0.2V @ 50mA
- Current - Supply (Max): 2.5mA
- Current - Output: 50mA
- Current - Quiescent (Iq): 15µA
- Voltage - Input (Max): 40V
- Base Part Number: LM2936
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Voltage - Output (Max): -
- Output Configuration: Positive
- Series: Automotive, AEC-Q100
- Supplier Device Package: 8-SOIC
- PSRR: 60dB (120Hz)
- Part Status: Active
- Mounting Type: Surface Mount
- Control Features: -
- Protection Features: Over Temperature, Reverse Polarity, Short Circuit
- Voltage - Output (Min/Fixed): 3.3V
- Number of Regulators: 1
- Packaging: Tube
- detail: Linear Voltage Regulator IC 1 Output 50mA 8-SOIC
