- دیتاشیت ADC1175-50CIMTX/NOPB

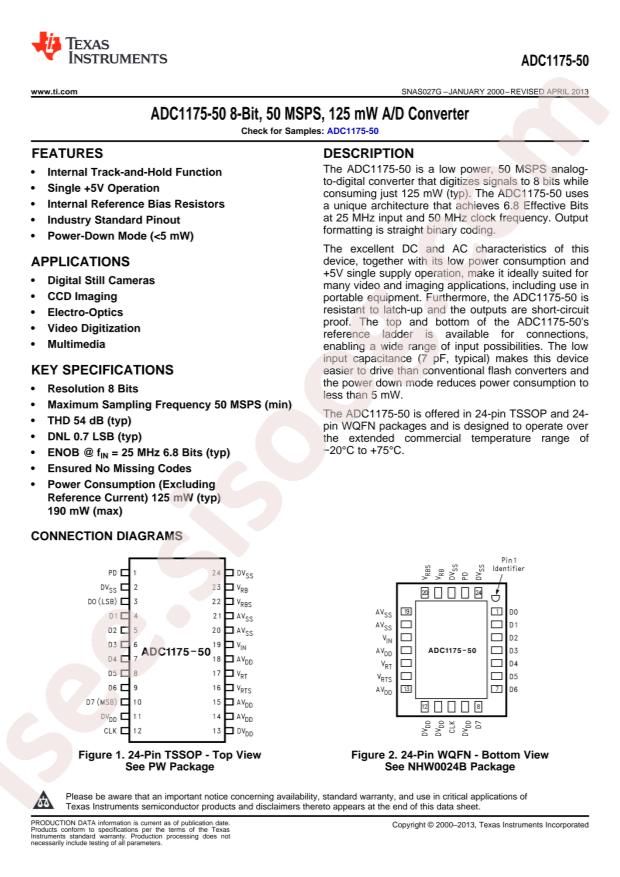

ADC1175-50CIMTX/NOPB دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | ADC1175-50CIMTX/NOPB |
|---|---|
| حجم فایل | 95.402 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 27 |
دانلود دیتاشیت ADC1175-50CIMTX/NOPB |
دانلود دیتاشیت |
|---|
سایر مستندات
ADC1175-50 28 pages
مشخصات فنی
- RoHS: true
- Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
- Datasheet: Texas Instruments ADC1175-50CIMTX/NOPB
- Interface: Parallel
- resolution: 8Bit
- Supply Voltage: 5V
- number of channels: 1
- sampling frequency: 50MHz
- Operating Temperature: -20°C~+75°C
- Package: TSSOP-24
- Manufacturer: Texas Instruments
- Sampling Rate (Per Second): 50M
- Number of Bits: 8
- Package / Case: 24-TSSOP (0.173", 4.40mm Width)
- Reference Type: External, Internal
- Features: -
- Part Status: Obsolete
- Series: -
- Base Part Number: ADC1175
- Number of A/D Converters: 1
- Mounting Type: Surface Mount
- Configuration: S/H-ADC
- Number of Inputs: 1
- Data Interface: Parallel
- Supplier Device Package: 24-TSSOP
- Voltage - Supply, Digital: 5V
- Architecture: Two-Step
- Input Type: Single Ended
- Ratio - S/H:ADC: 1:1
- Packaging: Tape & Reel (TR)
- Voltage - Supply, Analog: 5V
- detail: 8 Bit Analog to Digital Converter 1 Input 1 Two-Step 24-TSSOP
