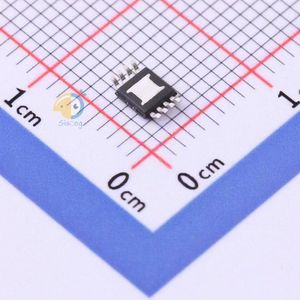

دیتاشیت MIC5282-3.3YMM-TR
مشخصات دیتاشیت
| نام دیتاشیت | MIC5282 |
|---|---|
| حجم فایل | 933.778 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 19 |
دانلود دیتاشیت MIC5282 |
MIC5282 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Microchip Tech MIC5282-3.3YMM-TR
- Output Current: 50mA
- Output Voltage: 3.3V
- Dropout Voltage: 3V@(50mA)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 120V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 11uA
- Package: MSOP-8-EP
- Manufacturer: Microchip Tech
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 120V
- Voltage - Output (Min/Fixed): 3.3V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 3V @ 50mA
- Current - Output: 50mA
- Current - Quiescent (Iq): 11µA
- PSRR: 90dB ~ 65dB (40kHz ~ 1kHz)
- Control Features: -
- Protection Features: Over Current, Over Temperature
- Mounting Type: Surface Mount
- Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Supplier Device Package: 8-MSOP
- Base Part Number: MIC5282-3.3
- detail: Linear Voltage Regulator IC 1 Output 50mA 8-MSOP
