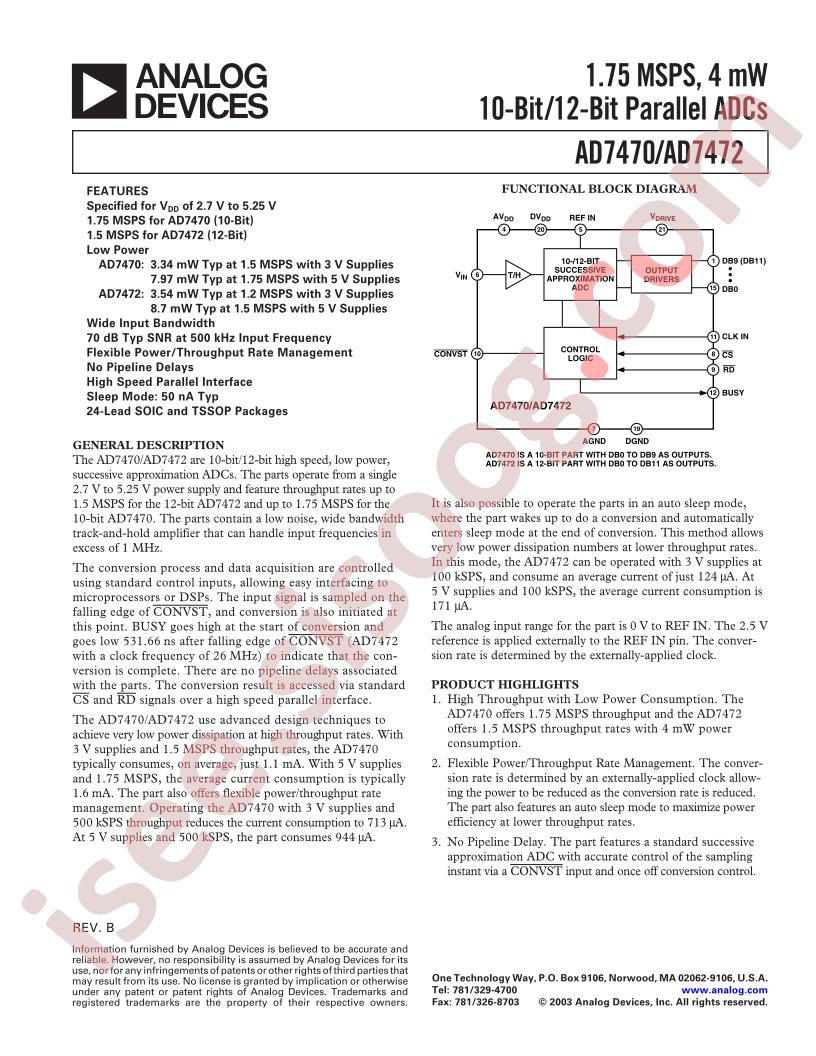

AD7470,72 دیتاشیت

AD7470,72

مشخصات دیتاشیت

نام دیتاشیت AD7470,72
حجم فایل 264.872 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

دانلود دیتاشیت AD7470,72

دانلود دیتاشیت

سایر مستندات

AD7470ARUZ-REEL7 20 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Analog Devices AD7472ARUZ
  • Interface: Parallel
  • resolution: 12Bit
  • Supply Voltage: 2.7V~5.25V
  • number of channels: 1
  • sampling frequency: 1.5MHz
  • Operating Temperature: -40°C~+85°C
  • Package: TSSOP-24
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Number of Bits: 12
  • Sampling Rate (Per Second): 1.5M
  • Number of Inputs: 1
  • Input Type: Single Ended
  • Data Interface: Parallel
  • Configuration: S/H-ADC
  • Ratio - S/H:ADC: 1:1
  • Number of A/D Converters: 1
  • Architecture: SAR
  • Reference Type: External
  • Voltage - Supply, Analog: 2.7V ~ 5.25V
  • Voltage - Supply, Digital: 2.7V ~ 5.25V
  • Features: -
  • Package / Case: 24-TSSOP (0.173", 4.40mm Width)
  • Supplier Device Package: 24-TSSOP
  • Mounting Type: Surface Mount
  • Base Part Number: AD7472
  • detail: 12 Bit Analog to Digital Converter 1 Input 1 SAR 24-TSSOP
