دیتاشیت LP38855T-1.2/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LP38855 |
|---|---|
| حجم فایل | 2198.578 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 20 |
دانلود دیتاشیت LP38855 |

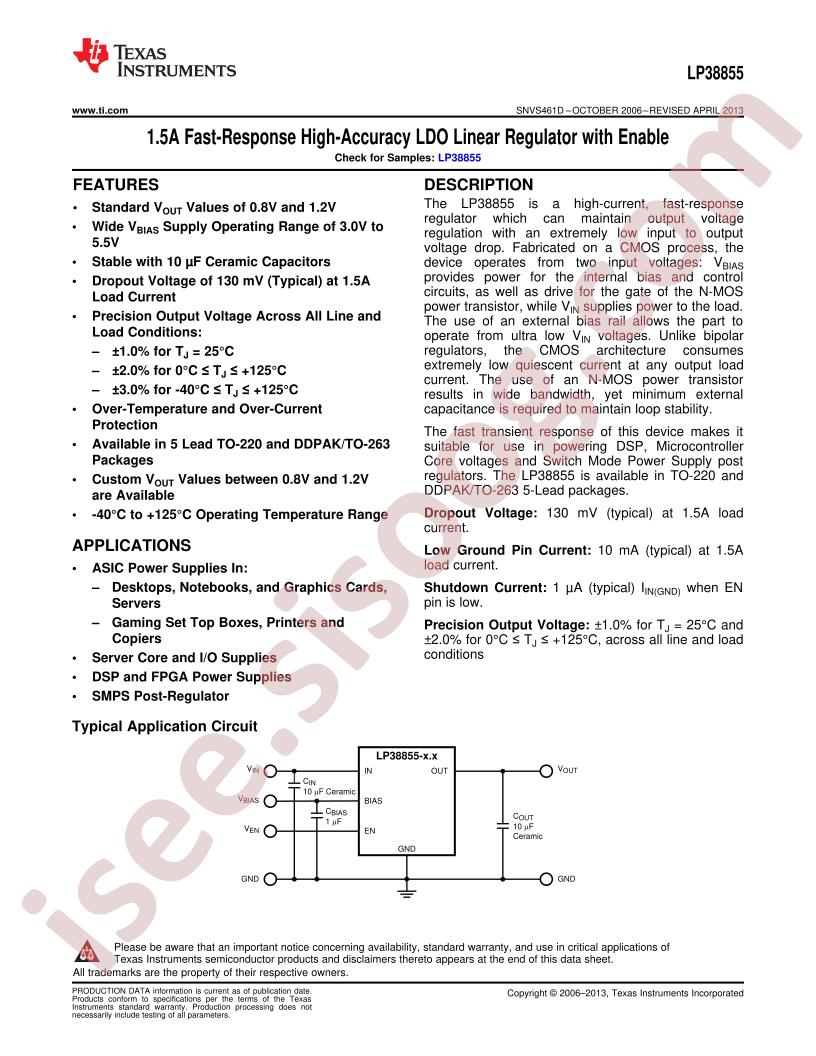

LP38855 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments LP38855T-1.2/NOPB
- Output Current: 1.5A
- Output Voltage: 1.2V
- Dropout Voltage: 0.18V@(1.5A)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 5.5V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 300uA
- Package: TO-220-5
- Manufacturer: Texas Instruments
- Control Features: Enable
- Base Part Number: LP38855
- Package / Case: TO-220-5 Formed Leads
- Current - Supply (Max): 15mA
- Part Status: Obsolete
- Current - Output: 1.5A
- PSRR: 80dB ~ 65dB (120Hz ~ 1kHz)
- Series: -
- Voltage - Output (Min/Fixed): 1.2V
- Mounting Type: Through Hole
- Number of Regulators: 1
- Current - Quiescent (Iq): 300µA
- Output Configuration: Positive
- Voltage Dropout (Max): 0.18V @ 1.5A
- Supplier Device Package: TO-220-5
- Protection Features: Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
- Voltage - Input (Max): 5.5V
- Output Type: Fixed
- Packaging: Tube
- Voltage - Output (Max): -
- detail: Linear Voltage Regulator IC 1 Output 1.5A TO-220-5
