ADUM3224, 4224 دیتاشیت

ADUM3224, 4224

مشخصات دیتاشیت

نام دیتاشیت ADUM3224, 4224
حجم فایل 565.428 کیلوبایت
نوع فایل pdf
تعداد صفحات 19

دانلود دیتاشیت ADUM3224, 4224

دانلود دیتاشیت

سایر مستندات

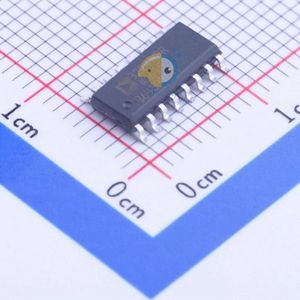

ADUM3224WBRZ 20 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Analog Devices ADUM4224WBRWZ
  • Fall Time: 12ns
  • Rise Time: 12ns
  • Number of Drivers: 2
  • Operating Temperature: -40°C~+125°C
  • Package: SOP-16-300mil
  • Manufacturer: Analog Devices
  • Series: Automotive
  • Packaging: Tube
  • Part Status: Active
  • Technology: Magnetic Coupling
  • Number of Channels: 2
  • Voltage - Isolation: 5000Vrms
  • Common Mode Transient Immunity (Min): 50kV/µs
  • Propagation Delay tpLH / tpHL (Max): 54ns, 54ns
  • Pulse Width Distortion (Max): -
  • Rise / Fall Time (Typ): 12ns, 12ns
  • Current - Output High, Low: -
  • Current - Peak Output: 4A
  • Voltage - Forward (Vf) (Typ): -
  • Voltage - Output Supply: 7.5V ~ 18V
  • Mounting Type: Surface Mount
  • Package / Case: 16-SOIC (0.295", 7.50mm Width)
  • Supplier Device Package: 16-SOIC
  • Approval Agency: CSA, UR
  • Base Part Number: ADUM4224
  • detail: 4A Gate Driver Magnetic Coupling 5000Vrms 2 Channel 16-SOIC
