ADV3221ARZ دیتاشیت

ADV3221ARZ

مشخصات دیتاشیت

نام دیتاشیت ADV3221ARZ
حجم فایل 90.602 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

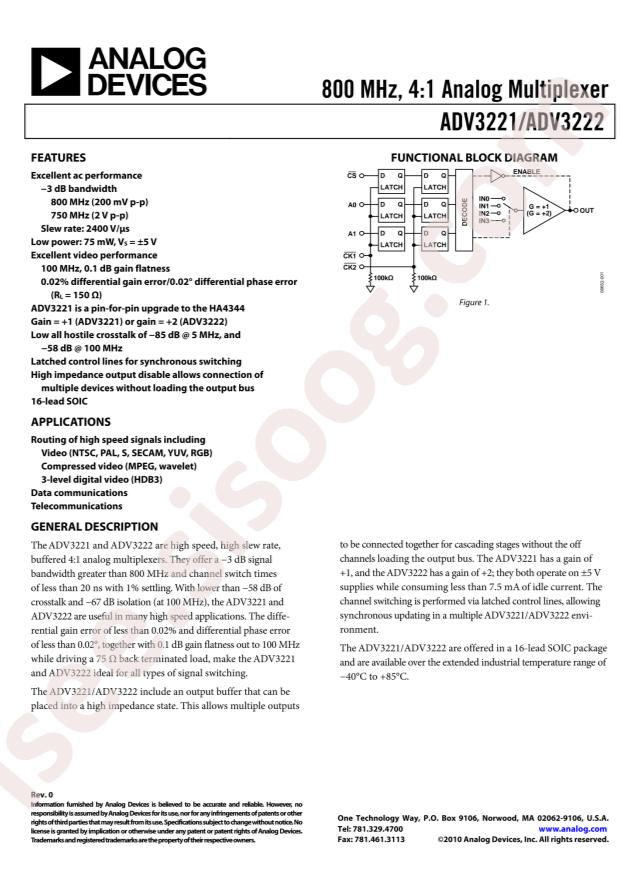

مشاهده دیتاشیت ADV3221ARZ

دانلود دیتاشیت

سایر مستندات

ADV322(1,2) 20 pages

مشخصات فنی

  • RoHS: true
  • Category: Logic ICs/Signal Switches / Encoders & Decoders / Multiplexers
  • Datasheet: Analog Devices ADV3221ARZ
  • Package: SOIC-16
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Switch Circuit: SP4T
  • Multiplexer/Demultiplexer Circuit: 4:1
  • Number of Circuits: 1
  • On-State Resistance (Max): -
  • Channel-to-Channel Matching (ΔRon): -
  • Voltage - Supply, Single (V+): -
  • Voltage - Supply, Dual (V±): ±4.5V ~ 5.5V
  • Switch Time (Ton, Toff) (Max): -
  • -3db Bandwidth: 1GHz
  • Charge Injection: -
  • Channel Capacitance (CS(off), CD(off)): 1.8pF
  • Current - Leakage (IS(off)) (Max): 2µA (Typ)
  • Crosstalk: -87dB @ 100MHz
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 16-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 16-SOIC
  • Base Part Number: ADV3221
  • detail: 1 Circuit IC Switch 4:1 16-SOIC
