ADCMP566BCPZ دیتاشیت

ADCMP566

مشخصات دیتاشیت

نام دیتاشیت ADCMP566
حجم فایل 212.649 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

مشاهده دیتاشیت ADCMP566

دانلود دیتاشیت

سایر مستندات

مستندات دیگری یافت نشد!

مشخصات فنی

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Comparators
  • Output Type: 互补;Differential;ECL;开射
  • Supply Voltage: 4.75V~5.25V
  • Operating Temperature: -40°C~+85°C
  • Input Bias Current (Ib): 42uA
  • Input Offset Voltage (Vos): 5mV
  • Input Hysteresis Voltage (Vhys): 1mV
  • Common Mode Rejection Ratio (CMRR): 69dB
  • Package: LFCSP-32
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tray
  • Part Status: Active
  • Type: with Latch
  • Number of Elements: 2
  • Voltage - Supply, Single/Dual (±): ±4.75V ~ 5.25V
  • Voltage - Input Offset (Max): 5mV @ -5.2V, 5V
  • Current - Input Bias (Max): 42µA @ -5.2V,5V
  • Current - Output (Typ): 30mA
  • Current - Quiescent (Max): 18mA, 85mA
  • CMRR, PSRR (Typ): 69dB CMRR
  • Propagation Delay (Max): 0.29ns
  • Hysteresis: ±1mV

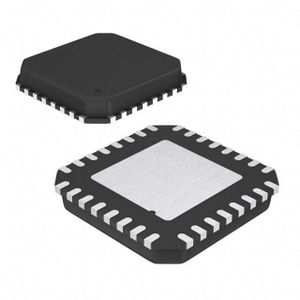

  • Package / Case: 32-WFQFN Exposed Pad, CSP
  • Mounting Type: Surface Mount
  • Supplier Device Package: 32-LFCSP (5x5)
  • Base Part Number: ADCMP566
  • detail: Comparator with Latch Complementary, Differential, ECL, Open-Emitter 32-LFCSP (5x5)
