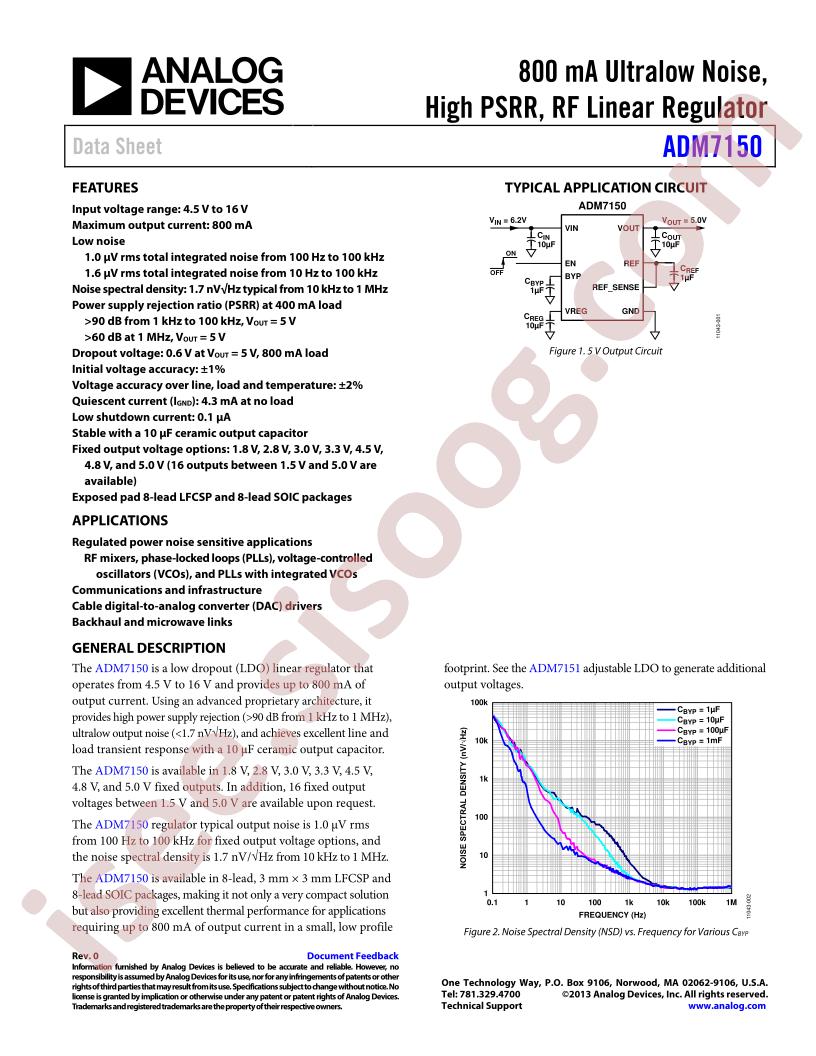

دیتاشیت ADM7150ARDZ-3.0
مشخصات دیتاشیت
| نام دیتاشیت |
ADM7150
|
| حجم فایل |
830.977
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
24
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Analog Devices ADM7150ARDZ-3.0
-
Output Current:
800mA
-
Output Voltage:
3V
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
16V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
7mA
-
Package:
SOP-8
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Output Configuration:
Positive
-
Output Type:
Fixed
-
Number of Regulators:
1
-
Voltage - Input (Max):
16V
-
Voltage - Output (Min/Fixed):
3V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
-
-
Current - Output:
800mA
-
Current - Quiescent (Iq):
7mA
-
Current - Supply (Max):
12mA
-
PSRR:
-
-
Control Features:
Enable
-
Protection Features:
Over Temperature, Short Circuit
-
Mounting Type:
Surface Mount
-

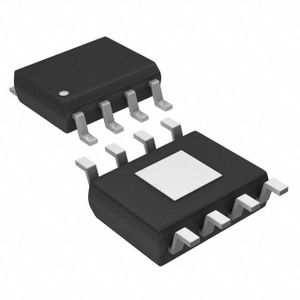

Package / Case:
8-SOIC (0.154", 3.90mm Width) Exposed Pad
-
Supplier Device Package:
8-SOIC-EP
-
Base Part Number:
ADM7150
-
detail:
Linear Voltage Regulator IC 1 Output 800mA 8-SOIC-EP
