TPS40090QPWRQ1 دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت TPS40090QPWRQ1	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/AC-DC Controllers & Regulators
Topology: Step-down
Datasheet: Texas Instruments TPS40090QPWRQ1
Duty Cycle: 87.5%
Supply Voltage: 4.5V~15V
Switching Frequency: 100kHz~1.2MHz
Operating Temperature: -40°C~+125°C@(TJ)

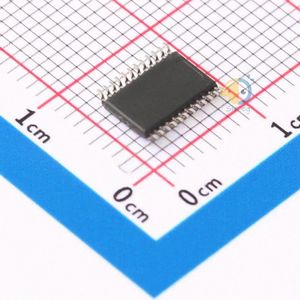

Package: TSSOP-24
Manufacturer: Texas Instruments
Number of Outputs: 4
Voltage - Supply (Vcc/Vdd): 4.5V ~ 15V
Base Part Number: TPS400
Package / Case: 24-TSSOP (0.173", 4.40mm Width)
Output Configuration: Positive
Series: Automotive, AEC-Q100
Supplier Device Package: 24-TSSOP
Frequency - Switching: 100kHz ~ 1.2MHz
Part Status: Active
Mounting Type: Surface Mount
Control Features: Current Limit, Enable, Frequency Control, Power Good, Soft Start
Clock Sync: Yes
Serial Interfaces: -
Function: Step-Down
Duty Cycle (Max): 87.5%
Packaging: Tape & Reel (TR)
Synchronous Rectifier: No
Output Type: PWM Signal
Output Phases: 4
detail: Buck Regulator Positive Output Step-Down DC-DC Controller IC 24-TSSOP
