دیتاشیت ADUM1510BRWZ

مشخصات دیتاشیت

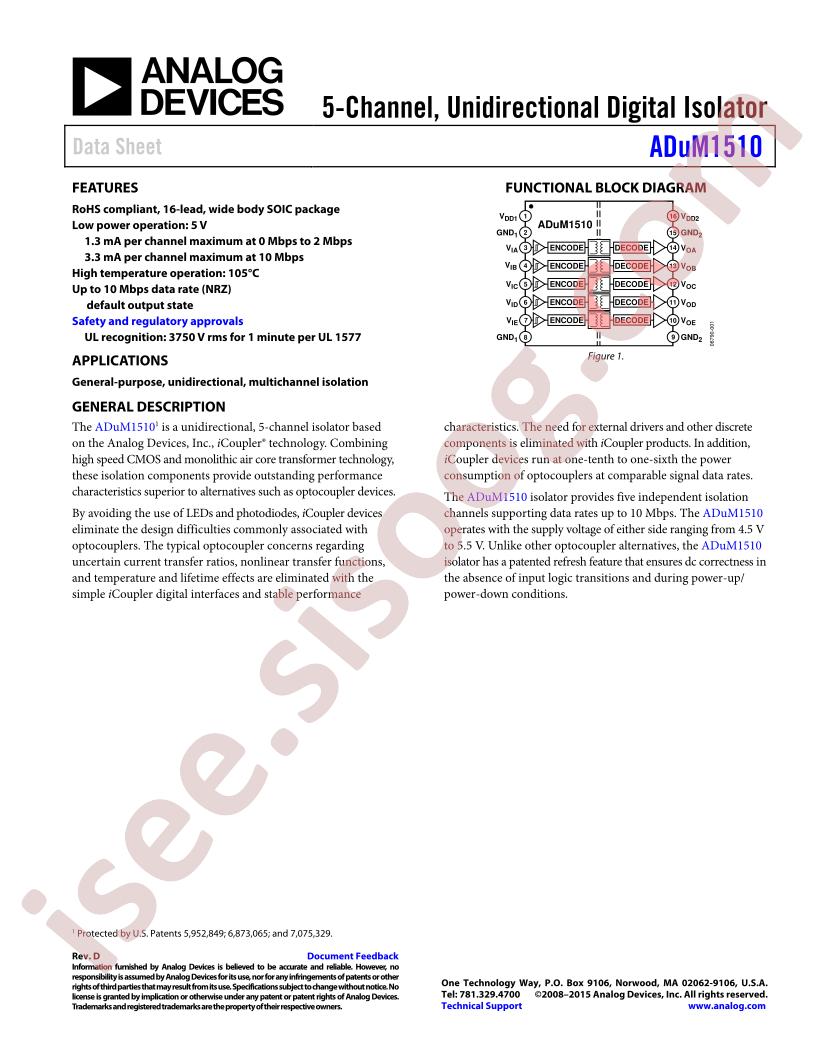

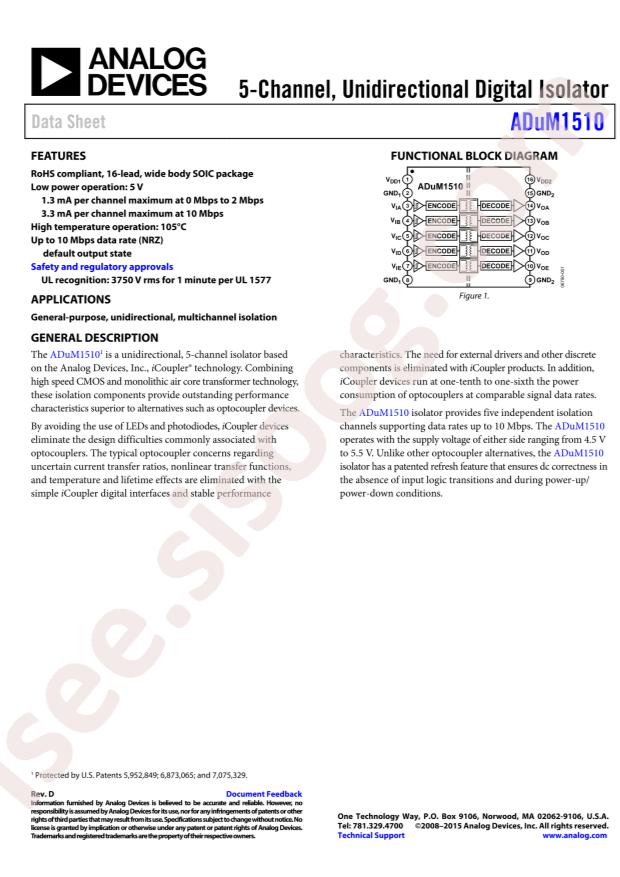

دانلود دیتاشیت ADUM1510	ADUM1510 Datasheet

RoHS: true
Category: Communication Interface Chip/UART/485/232/Digital Isolators
Datasheet: Analog Devices ADUM1510BRWZ
Package: SOP-16-300mil
Manufacturer: Analog Devices
Series: iCoupler®
Packaging: Tube
Part Status: Active
Technology: Magnetic Coupling
Type: General Purpose
Isolated Power: No
Number of Channels: 5
Inputs - Side 1/Side 2: 5/0
Channel Type: Unidirectional
Voltage - Isolation: 2500Vrms
Common Mode Transient Immunity (Min): 25kV/µs
Data Rate: 10Mbps
Propagation Delay tpLH / tpHL (Max): 50ns, 50ns
Pulse Width Distortion (Max): 5ns
Rise / Fall Time (Typ): 2.5ns, 2.5ns
Voltage - Supply: 4.5V ~ 5.5V
Operating Temperature: -40°C ~ 105°C
Mounting Type: Surface Mount
Package / Case: 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package: 16-SOIC
Base Part Number: ADUM1510
detail: General Purpose Digital Isolator 2500Vrms 5 Channel 10Mbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
