LM4946SQ/NOPB دیتاشیت

مشخصات دیتاشیت

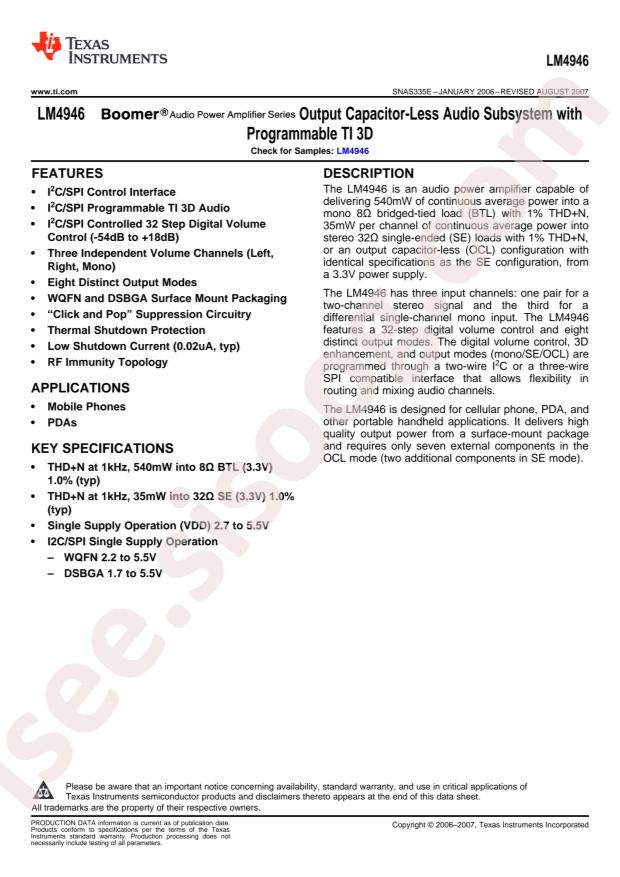

مشاهده دیتاشیت LM4946SQ/NOPB	دانلود دیتاشیت

LM4946 38 pages

RoHS: true
Category: Operational Amplifier/Comparator/Audio Power OpAmps
Datasheet: Texas Instruments LM4946SQ/NOPB
Package: QFN-24-EP(4x4)
Manufacturer: Texas Instruments
Series: Boomer®
Type: Class D
Package / Case: 24-WFQFN Exposed Pad
Supplier Device Package: 24-WQFN (4x4)
Part Status: Active
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 85°C (TA)
Max Output Power x Channels @ Load: 1.3W x 1 @ 8Ohm; 85mW x 2 @ 32Ohm
Voltage - Supply: 2.7V ~ 5.5V
Packaging: Cut Tape (CT)
Base Part Number: LM4946
Features: 3D, Depop, I²C, Mute, Shutdown, SPI, Thermal Protection, Volume Control
Output Type: 1-Channel (Mono) with Stereo Headphones
detail: Amplifier IC 1-Channel (Mono) with Stereo Headphones Class D 24-WQFN (4x4)
