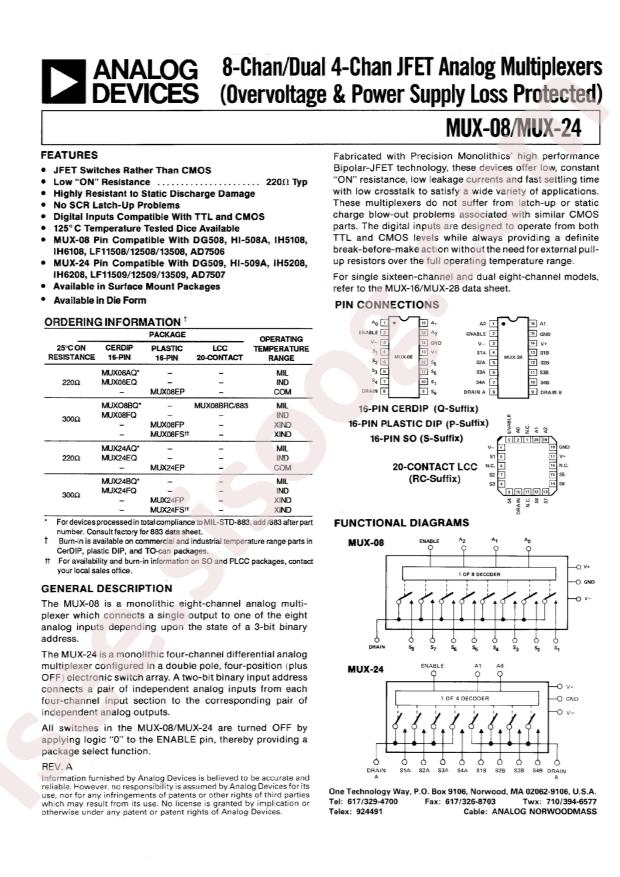

دیتاشیت MUX08EQ
مشخصات دیتاشیت
| نام دیتاشیت |
MUX-08,24
|
| حجم فایل |
535.067
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
12
|
مشخصات
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
-
Datasheet:
Analog Devices MUX08EQ
-
Turn-on time:
2us
-
Turn-off time:
400ns
-
Number of Channels:
1
-
On-State Resistance (Max):
300Ω
-
Package:
DIP-16
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Switch Circuit:
-
-
Multiplexer/Demultiplexer Circuit:
8:1
-
Number of Circuits:
1
-
Channel-to-Channel Matching (ΔRon):
21Ohm
-
Voltage - Supply, Single (V+):
-
-
Voltage - Supply, Dual (V±):
-
-
Switch Time (Ton, Toff) (Max):
2µs, 400ns
-
-3db Bandwidth:
-
-
Charge Injection:
-
-
Channel Capacitance (CS(off), CD(off)):
2.5pF, 7pF
-
Current - Leakage (IS(off)) (Max):
1nA
-
Crosstalk:
-70dB @ 500kHz
-
Operating Temperature:
-25°C ~ 85°C (TA)
-
Mounting Type:
Through Hole
-
Package / Case:
16-CDIP (0.300", 7.62mm)
-
Supplier Device Package:
16-CDIP
-
Base Part Number:
MUX08
-
detail:
1 Circuit IC Switch 8:1 300Ohm 16-CDIP
