دیتاشیت LM3000SQ/NOPB

LM3000

مشخصات دیتاشیت

نام دیتاشیت LM3000
حجم فایل 1908.066 کیلوبایت
نوع فایل pdf
تعداد صفحات 42

دانلود دیتاشیت LM3000

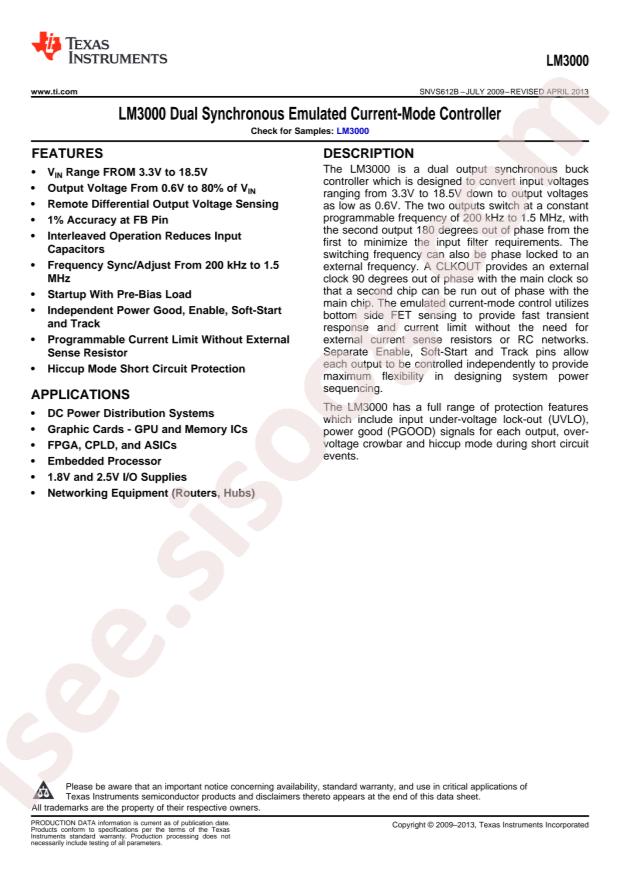

LM3000 Datasheet

مشخصات

  • Topology: Buck
  • Number of Outputs: 2
  • Voltage - Supply (Vcc/Vdd): 3.3V ~ 5.5V
  • Base Part Number: LM3000
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Package / Case: 32-WFQFN Exposed Pad
  • Manufacturer: Texas Instruments
  • Output Configuration: Positive
  • Series: -
  • Supplier Device Package: 32-WQFN (5x5)
  • Frequency - Switching: 200kHz ~ 1.5MHz
  • Part Status: Discontinued at Digi-Key
  • Mounting Type: Surface Mount
  • Control Features: Current Limit, Enable, Frequency Control, Power Good, Soft Start, Tracking
  • Clock Sync: Yes
  • Serial Interfaces: -
  • Function: Step-Down
  • Duty Cycle (Max): 85%
  • Packaging: Cut Tape (CT)
  • Synchronous Rectifier: Yes
  • Output Type: Transistor Driver
  • Output Phases: 2
  • detail: Buck Regulator Positive Output Step-Down DC-DC Controller IC 32-WQFN (5x5)
