LM3754 Datasheet دیتاشیت

مشخصات دیتاشیت

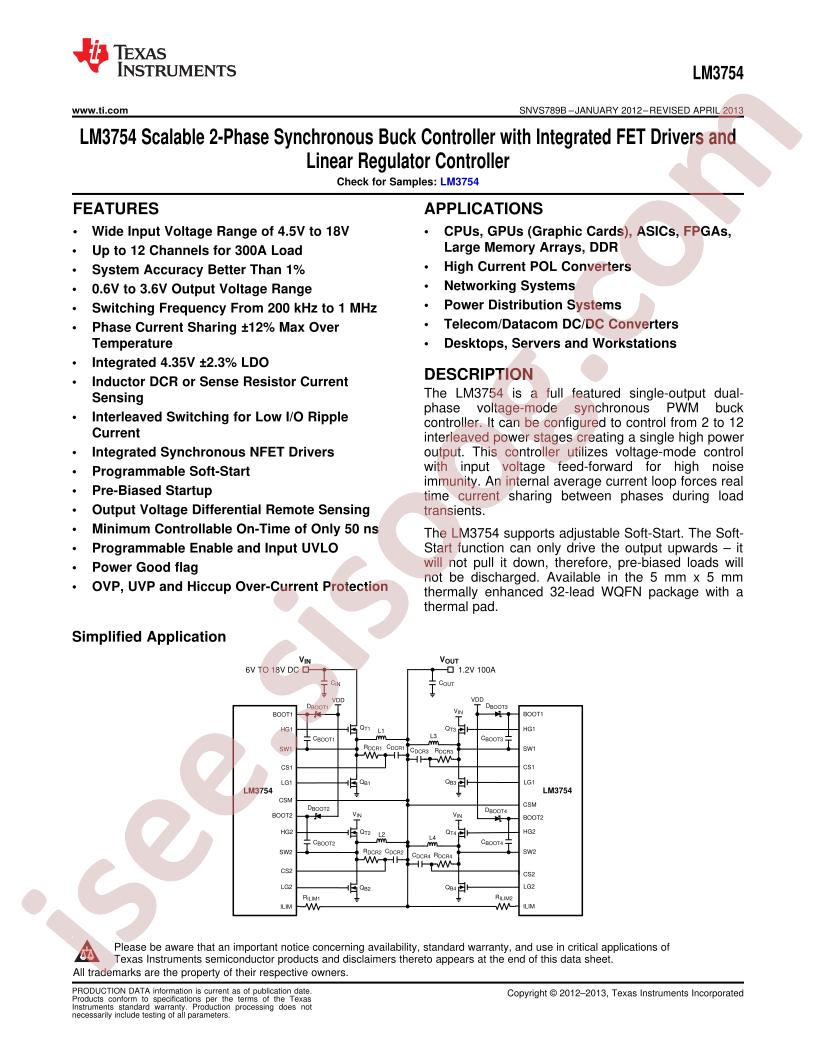

مشاهده دیتاشیت LM3754 Datasheet	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Controllers
Datasheet: Texas Instruments LM3754SQ/NOPB
Package: QFN-32-EP(5x5)
Manufacturer: Texas Instruments
Topology: Buck
Number of Outputs: 2
Voltage - Supply (Vcc/Vdd): 4.5V ~ 18V
Base Part Number: LM3754
Operating Temperature: -5°C ~ 125°C (TJ)
Package / Case: 32-WFQFN Exposed Pad
Output Configuration: Positive
Series: -
Supplier Device Package: 32-WQFN (5x5)
Frequency - Switching: 200kHz ~ 1MHz
Part Status: Discontinued at Digi-Key
Mounting Type: Surface Mount
Control Features: Current Limit, Enable, Frequency Control, Power Good, Tracking
Clock Sync: Yes
Serial Interfaces: -
Function: Step-Down
Duty Cycle (Max): 81%
Packaging: Cut Tape (CT)
Synchronous Rectifier: Yes
Output Type: Transistor Driver
Output Phases: 2
detail: Buck Regulator Positive Output Step-Down DC-DC Controller IC 32-WQFN (5x5)
