LM2717MTX-ADJ/NOPB دیتاشیت

مشخصات دیتاشیت

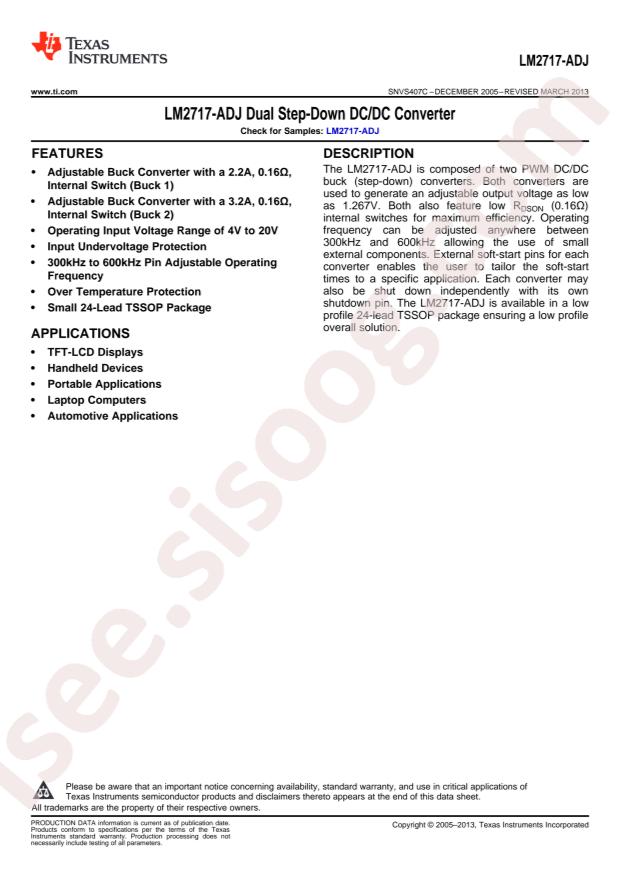

دانلود دیتاشیت LM2717MTX-ADJ/NOPB	دانلود دیتاشیت

LM2717 20 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: Texas Instruments LM2717MTX-ADJ/NOPB
Output Type: Adjustable
Input Voltage: 4V~20V
Output Voltage: 1.258V~18.6V
Number of Outputs: 2
Switching Frequency: 600kHz
Output Current (Max): 2.2A;3.2A
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: NO
Package: TSSOP-24
Manufacturer: Texas Instruments
Package / Case: 24-TSSOP (0.173", 4.40mm Width)
Output Configuration: Positive
Base Part Number: LM2717
Packaging: Tape & Reel (TR)
Frequency - Switching: 300kHz ~ 600kHz
Supplier Device Package: 24-TSSOP
Part Status: Obsolete
Current - Output: 2.2A, 3.2A
Series: -
Voltage - Input (Max): 20V
Synchronous Rectifier: No
Voltage - Output (Min/Fixed): 3.3V
Voltage - Input (Min): 4V
Mounting Type: Surface Mount
Voltage - Output (Max): -
detail: Buck Switching Regulator IC Positive Fixed 3.3V 2 Output 2.2A, 3.2A 24-TSSOP (0.173", 4.40mm Width)
