دیتاشیت UC1714/5, 2714/5, 3714/5

UC1714/5, 2714/5, 3714/5

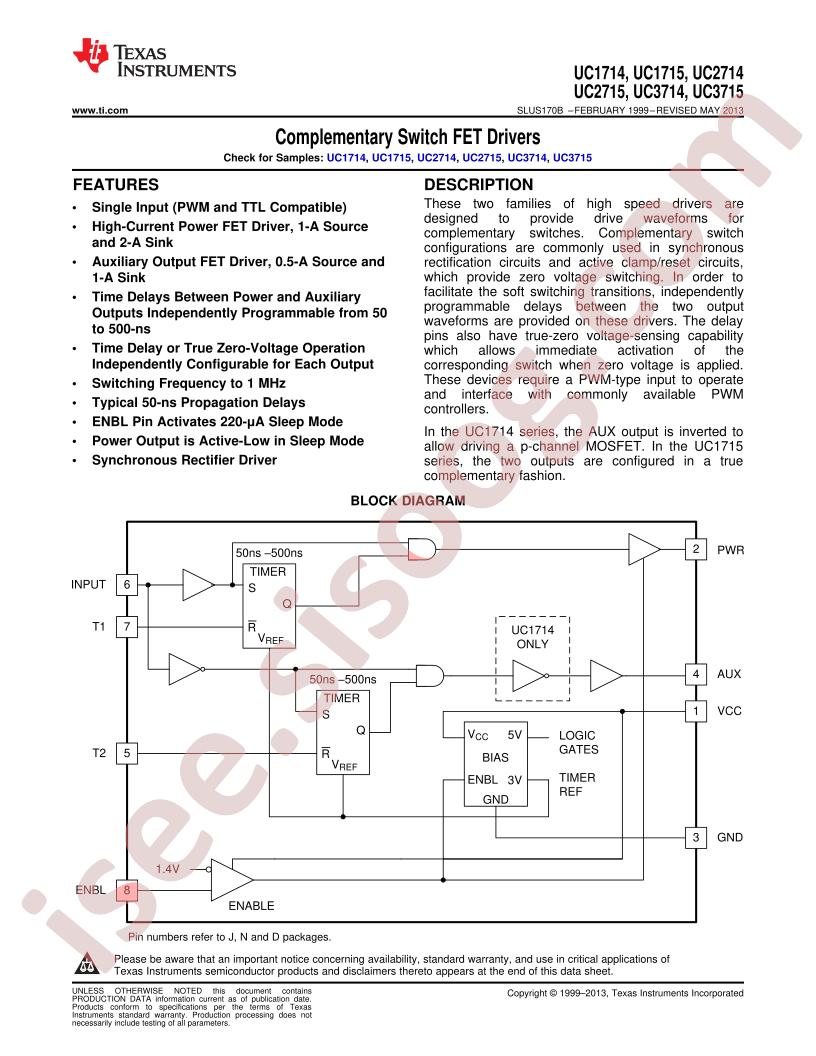

مشخصات دیتاشیت

نام دیتاشیت UC1714/5, 2714/5, 3714/5
حجم فایل 1029.358 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

UC1714/5, 2714/5, 3714/5

دانلود دیتاشیت

سایر مستندات

UC3715DTR 15 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Texas Instruments UC3714D
  • Fall Time: 25ns
  • Load Type: MOSFET
  • Rise Time: 30ns
  • Supply Voltage: 7V~20V
  • Number of Drivers: 2
  • Driven Configuration: Low Side
  • Operating Temperature: 0°C~+150°C@(Tj)
  • Peak Output Current(sink): 1A
  • Peak Output Current(source): 500mA
  • Package: SOP-8
  • Manufacturer: Texas Instruments
  • Series: -
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Current - Peak Output (Source, Sink): 500mA, 1A
  • Base Part Number: UC371
  • Channel Type: Synchronous
  • Rise / Fall Time (Typ): 30ns, 25ns
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Logic Voltage - VIL, VIH: 0.8V, 2V
  • Gate Type: N-Channel, P-Channel MOSFET
  • Voltage - Supply: 7V ~ 20V
  • Packaging: Tube
  • Input Type: Non-Inverting
  • Supplier Device Package: 8-SOIC
  • detail: Low-Side Gate Driver IC Non-Inverting 8-SOIC
