ADG5298HFZ دیتاشیت

ADG5298HFZ

مشخصات دیتاشیت

نام دیتاشیت ADG5298HFZ
حجم فایل 105.068 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

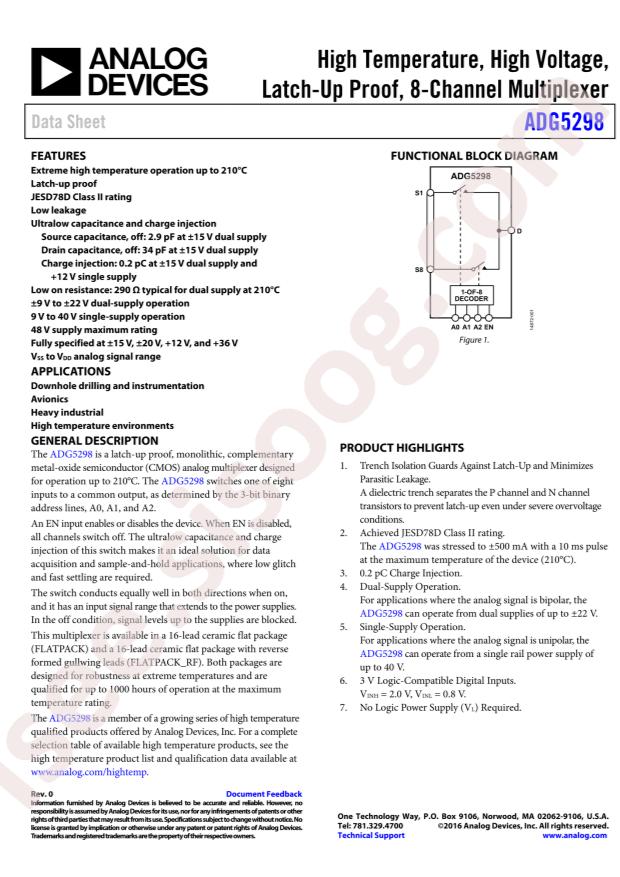

مشاهده دیتاشیت ADG5298HFZ

دانلود دیتاشیت

سایر مستندات

ADG5298 20 pages

مشخصات فنی

  • RoHS: true
  • Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
  • Datasheet: Analog Devices ADG5298HFZ
  • Turn-on time: 245ns
  • Turn-off time: 260ns
  • Supply Voltage: 9V~40V
  • Switch Circuit: -
  • Number of Channels: 1
  • On-State Resistance (Max): 350Ω
  • Package: FlatPack-16
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Bulk
  • Part Status: Active
  • Multiplexer/Demultiplexer Circuit: 8:1
  • Number of Circuits: 1
  • Channel-to-Channel Matching (ΔRon): 1.5Ohm
  • Voltage - Supply, Single (V+): 9V ~ 40V
  • Voltage - Supply, Dual (V±): ±9V ~ 22V
  • Switch Time (Ton, Toff) (Max): 245ns, 260ns
  • -3db Bandwidth: 121MHz
  • Charge Injection: 0.4pC
  • Channel Capacitance (CS(off), CD(off)): 2.8pF, 33pF
  • Current - Leakage (IS(off)) (Max): 8nA
  • Crosstalk: -80dB @ 1MHz
  • Operating Temperature: -55°C ~ 210°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 16-CFlatPack
  • Supplier Device Package: 16-CFlatPack
  • Base Part Number: ADG5298
  • detail: 1 Circuit IC Switch 8:1 350Ohm 16-CFlatPack
