CC2541F256TRHARQ1 دیتاشیت

CC2541F256TRHARQ1

مشخصات دیتاشیت

نام دیتاشیت CC2541F256TRHARQ1
حجم فایل 90.58 کیلوبایت
نوع فایل pdf
تعداد صفحات 34

دانلود دیتاشیت CC2541F256TRHARQ1

دانلود دیتاشیت

سایر مستندات

CC253x, CC2540/41 User Guide 354 pages

CC2541-Q1 35 pages

CC2541-Q1 Errata 3 pages

مشخصات فنی

  • RoHS: true
  • Category: Radio Frequency Chip/Antenna/RF Transceiver ICs
  • Data Rate: 2Mbps
  • Datasheet: Texas Instruments CC2541F256TRHARQ1
  • Interface: I2C,SPI,USART
  • Applications: Bluetooth
  • Frequency Range: 2.4GHz
  • Receive Current: 18.3mA
  • Operating Voltage: 2V~3.6V
  • Operating Temperature: -40°C~+105°C
  • Current Of Transmitting: 17.2mA

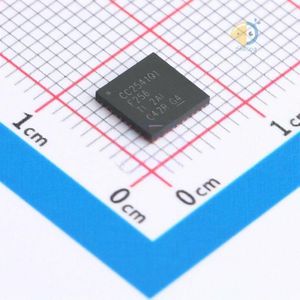

  • Package: QFN-40-EP(6x6)
  • Manufacturer: Texas Instruments
  • Type: TxRx + MCU
  • Sensitivity: -94dBm
  • Base Part Number: CC2541
  • Current - Transmitting: 17.2mA ~ 18.6mA
  • Frequency: 2.4GHz
  • Package / Case: 40-VFQFN Exposed Pad
  • Memory Size: 256kB Flash, 8kB RAM
  • Modulation: GFSK, MSK
  • Voltage - Supply: 2V ~ 3.6V
  • GPIO: 23
  • Series: Automotive, AEC-Q100
  • RF Family/Standard: Bluetooth
  • Protocol: Bluetooth v4.0
  • Supplier Device Package: 40-VQFN (6x6)
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Serial Interfaces: I²C, SPI, USART
  • Power - Output: 0dBm
  • Data Rate (Max): 2Mbps
  • Current - Receiving: 18.3mA ~ 20.8mA
  • detail: IC RF TxRx + MCU Bluetooth Bluetooth v4.0 2.4GHz 40-VFQFN Exposed Pad
