Analog Signal Chain Guide دیتاشیت

Analog Signal Chain Guide

مشخصات دیتاشیت

نام دیتاشیت Analog Signal Chain Guide
حجم فایل 1059.19 کیلوبایت
نوع فایل pdf
تعداد صفحات 11

دانلود دیتاشیت Analog Signal Chain Guide

دانلود دیتاشیت

سایر مستندات

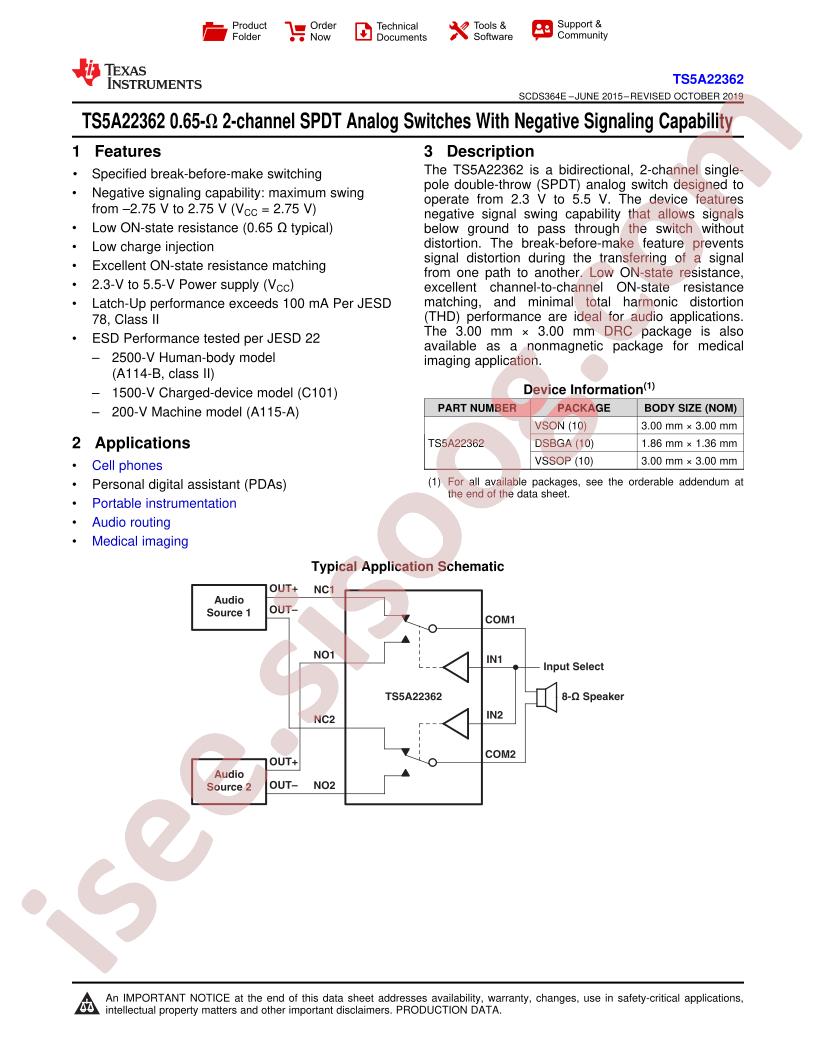

TS5A22362 Datasheet 33 pages

مشخصات فنی

  • Switch Circuit: SPDT
  • Charge Injection: 10pC
  • Voltage - Supply, Dual (V±): -
  • Crosstalk: -78dB @ 100kHz
  • Base Part Number: TS5A223
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Switch Time (Ton, Toff) (Max): 80ns, 70ns
  • Multiplexer/Demultiplexer Circuit: 2:1
  • Package / Case: 10-VFDFN Exposed Pad
  • Channel Capacitance (CS(off), CD(off)): 70pF
  • Channel-to-Channel Matching (ΔRon): 40mOhm
  • Supplier Device Package: 10-VSON (3x3)
  • Series: -
  • Current - Leakage (IS(off)) (Max): 50nA
  • Number of Circuits: 2
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Voltage - Supply, Single (V+): 2.3V ~ 5.5V
  • Manufacturer: Texas Instruments
  • -3db Bandwidth: 18.3MHz
  • On-State Resistance (Max): 740mOhm
  • Packaging: Cut Tape (CT)
  • detail: 2 Circuit IC Switch 2:1 740mOhm 10-VSON (3x3)
