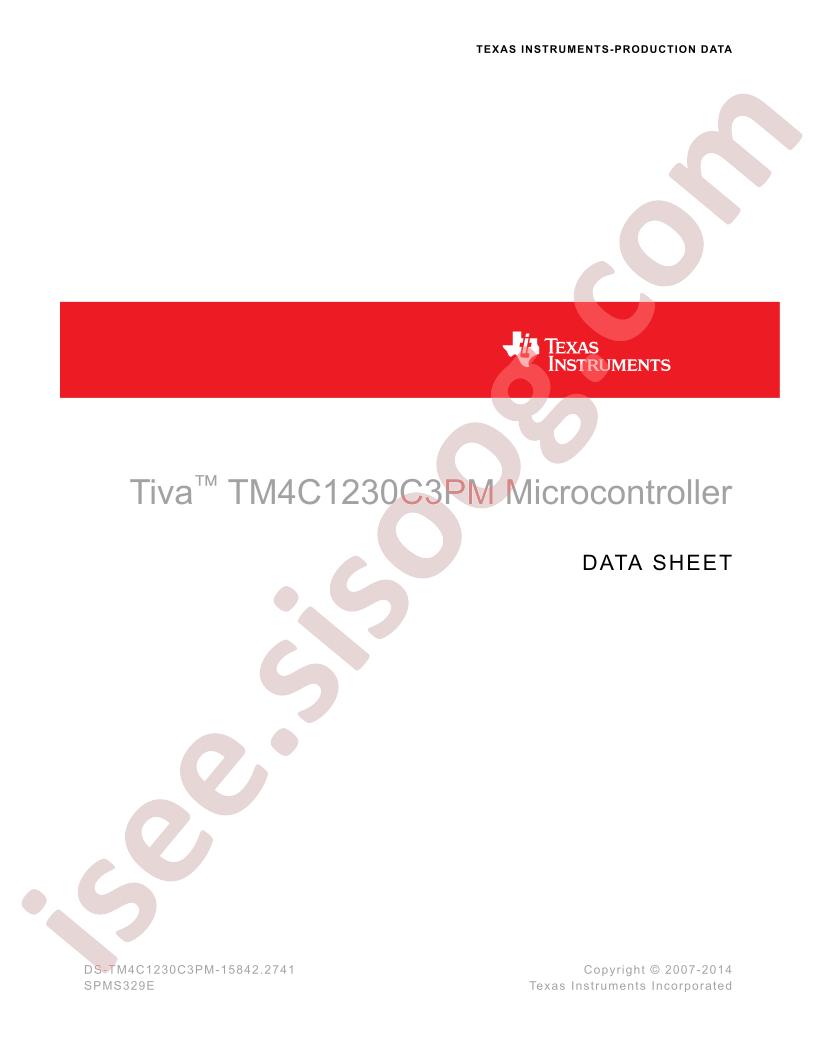

TM4C1230C3PMIR دیتاشیت

TM4C1230C3PMIR

مشخصات دیتاشیت

نام دیتاشیت TM4C1230C3PMIR
حجم فایل 7897.4 کیلوبایت
نوع فایل pdf
تعداد صفحات 1106

مشاهده دیتاشیت TM4C1230C3PMIR

دانلود دیتاشیت

سایر مستندات

TM4C1230C3PM 1103 pages

TM4C1230C3PMI 1042 pages

مشخصات فنی

  • CAN: -
  • I2C: -
  • I2S: -
  • SPI: -
  • RoHS: true
  • EEPROM: -
  • CPU Core: ARM-MSeries
  • Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
  • RAM Size: 12KB
  • Watchdog: Yes
  • ADC (Bit): 12bit
  • DAC (Bit): -
  • Datasheet: Texas Instruments TM4C1230C3PMIR
  • PWM (Bit): -
  • 8Bit Timer: -
  • UART/USART: -
  • 16Bit Timer: -
  • 32Bit Timer: -
  • Real-Time Clock: -
  • CPU Maximum Speed: 80MHz
  • GPIO Ports Number: 49
  • Low-Voltage Detect: Yes
  • CCP Capture/Compare: -
  • Internal Comparator: -
  • Internal Oscillator: Yes
  • Peripheral/Function: DMA;WDT;IrDA
  • Program Memory Type: FLASH
  • Direct Memory Access: Yes
  • Program Storage Size: 32KB
  • Universal Serial Bus: -
  • communication protocol: -
  • Operating Voltage Range: 1.08V~3.63V
  • Infrared Data Association: Yes
  • Operating Temperature Range: -40°C~+85°C
  • Secure Digital Input and Output: -
  • Package: LQFP-64(10x10)
  • Manufacturer: Texas Instruments
  • Peripherals: Brown-out Detect/Reset, DMA, POR, WDT
  • Voltage - Supply (Vcc/Vdd): 1.08V ~ 3.63V
  • Base Part Number: TM4C
  • Speed: 80MHz
  • Package / Case: 64-LQFP
  • EEPROM Size: 2K x 8
  • Supplier Device Package: 64-LQFP (10x10)
  • Series: Tiva™ C
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Number of I/O: 49
  • Oscillator Type: Internal
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Core Size: 32-Bit
  • Connectivity: CANbus, I²C, IrDA, Microwire, SPI, SSI, UART/USART
  • Program Memory Size: 32KB (32K x 8)
  • Core Processor: ARM® Cortex®-M4F
  • Packaging: Tape & Reel (TR)
  • Data Converters: A/D 12x12b
  • detail: ARM® Cortex®-M4F Tiva™ C Microcontroller IC 32-Bit 80MHz 32KB (32K x 8) FLASH 64-LQFP (10x10)
