TLC2654IPG4 数据手册
其他文档

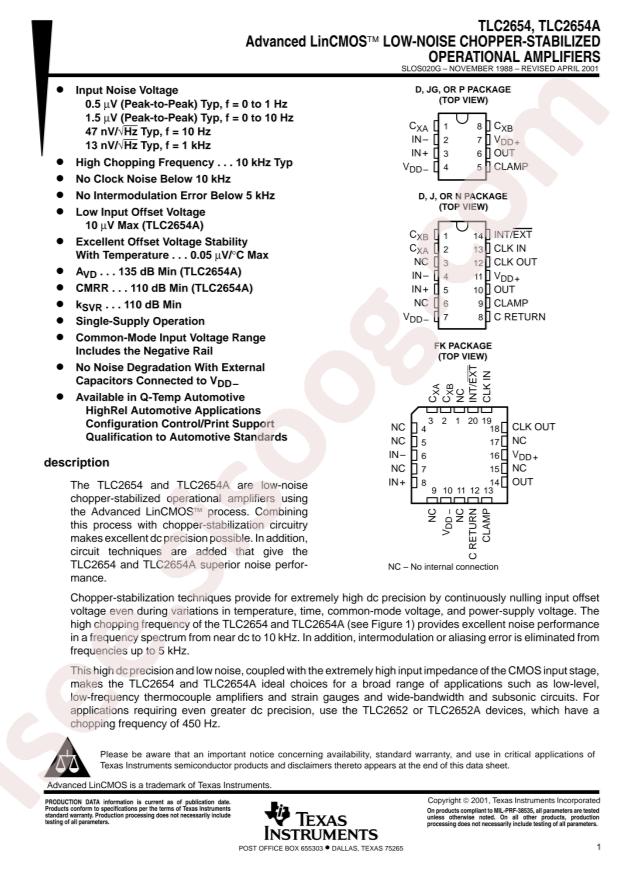

TLC2654, TLC2654A 37 pages
技术规格
- RoHS: true
- Category: Operational Amplifier/Comparator/Operational Amplifier
- Datasheet: Texas Instruments TLC2654IPG4
- Package: PDIP-8
- Manufacturer: Texas Instruments
- Series: LinCMOS™
- Package / Case: 8-DIP (0.300", 7.62mm)
- Number of Circuits: 1
- Current - Supply: 1.5mA
- Voltage - Input Offset: 5µV
- Mounting Type: Through Hole
- Part Status: Active
- Slew Rate: 3.7V/µs
- Voltage - Supply, Single/Dual (±): 4.6V ~ 16V, ±2.3V ~ 8V
- Gain Bandwidth Product: 1.9MHz
- Operating Temperature: -40°C ~ 85°C
- Amplifier Type: General Purpose
- Current - Output / Channel: 50mA
- Packaging: Tube
- Base Part Number: TLC265
- Current - Input Bias: 50pA
- Output Type: -
- Supplier Device Package: 8-PDIP
- detail: General Purpose Amplifier 1 Circuit 8-PDIP
