UCC3884D دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت UCC3884D	دانلود دیتاشیت

UCC3884D 12 pages

RoHS: true
Category: Power Supply Chip/DC-DC Controllers
Function: boost converterType;Step-down type;Buck-boost type
Topology: Step-down;Boost;Flyback

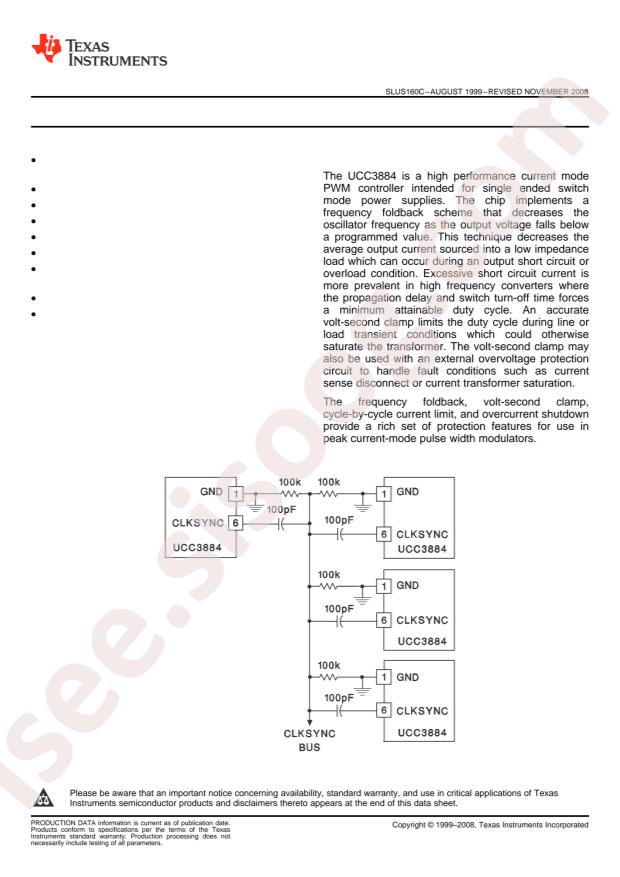

Datasheet: Texas Instruments UCC3884D
Input Voltage: 8.3V~15V
Duty Cycle (Max): 78%
Number of Outputs: 1
Switching Frequency: -
Operating Temperature: 0°C~+70°C@(TA)
Synchronous Rectification: NO
Package: SOP-16
Manufacturer: Texas Instruments
Voltage - Supply (Vcc/Vdd): 8.3V ~ 15V
Base Part Number: UCC388
Package / Case: 16-SOIC (0.154", 3.90mm Width)
Output Configuration: Positive
Series: -
Supplier Device Package: 16-SOIC
Frequency - Switching: -
Part Status: Active
Mounting Type: Surface Mount
Control Features: Enable
Clock Sync: Yes
Serial Interfaces: -
Packaging: Tube
Synchronous Rectifier: No
Output Type: Transistor Driver
Output Phases: 1
detail: Buck, Boost, Flyback, Forward Converter Regulator Positive Output Step-Up, Step-Down, Step-Up/Step-Down DC-DC Controller IC 16-SOIC
