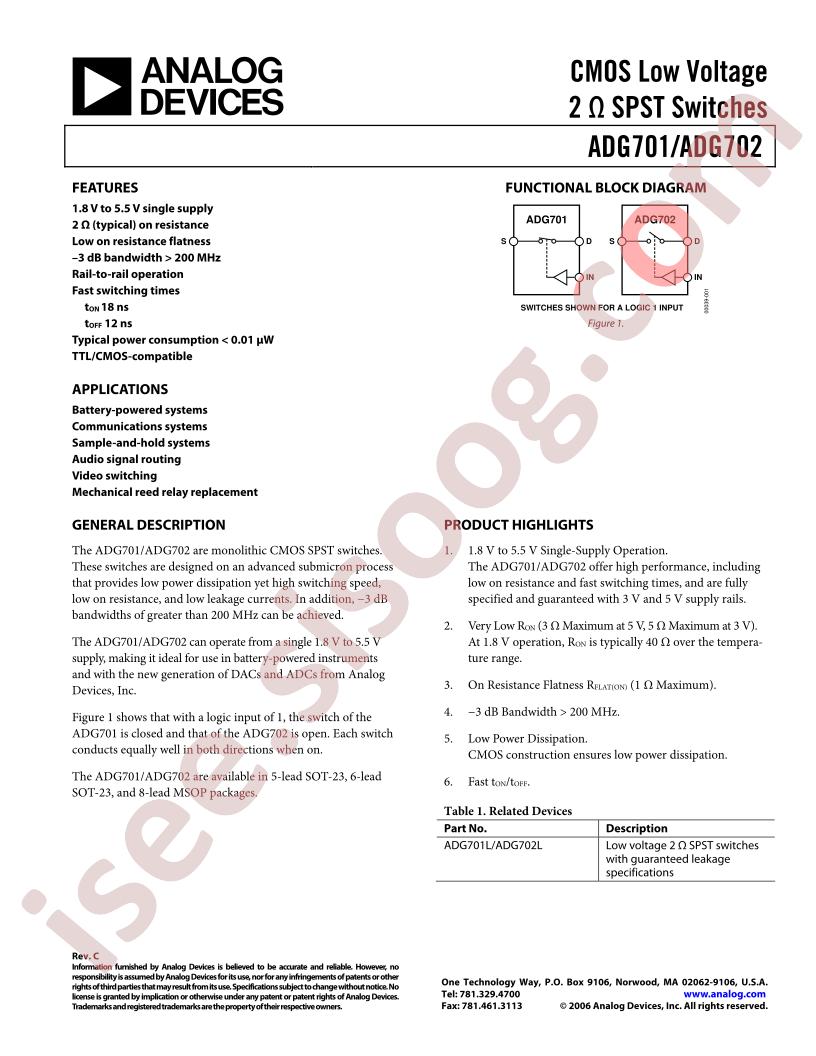

ADG701,702 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
ADG701,702
|
|
حجم فایل
|
271.218
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
12
|
مشخصات فنی
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
-
Datasheet:
Analog Devices ADG701BRJZ-500RL7
-
Turn-on time:
12ns
-
Turn-off time:
8ns
-
Supply Voltage:
1.8V~5V
-
Switch Circuit:
SPST(SPST)-Normal Open
-
Number of Channels:
1
-
On-State Resistance (Max):
3Ω
-
Package:
SOT-23-5
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Multiplexer/Demultiplexer Circuit:
1:1
-
Number of Circuits:
1
-
Channel-to-Channel Matching (ΔRon):
-
-
Voltage - Supply, Single (V+):
1.8V ~ 5V
-
Voltage - Supply, Dual (V±):
-
-
Switch Time (Ton, Toff) (Max):
12ns, 8ns (Typ)
-
-3db Bandwidth:
200MHz
-
Charge Injection:
5pC
-
Channel Capacitance (CS(off), CD(off)):
17pF, 17pF
-
Current - Leakage (IS(off)) (Max):
10pA (Typ)
-
Crosstalk:
-
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Mounting Type:
Surface Mount
-
Package / Case:
SC-74A, SOT-753
-
Supplier Device Package:
SOT-23-5
-
Base Part Number:
ADG701
-
detail:
1 Circuit IC Switch 1:1 3Ohm SOT-23-5
