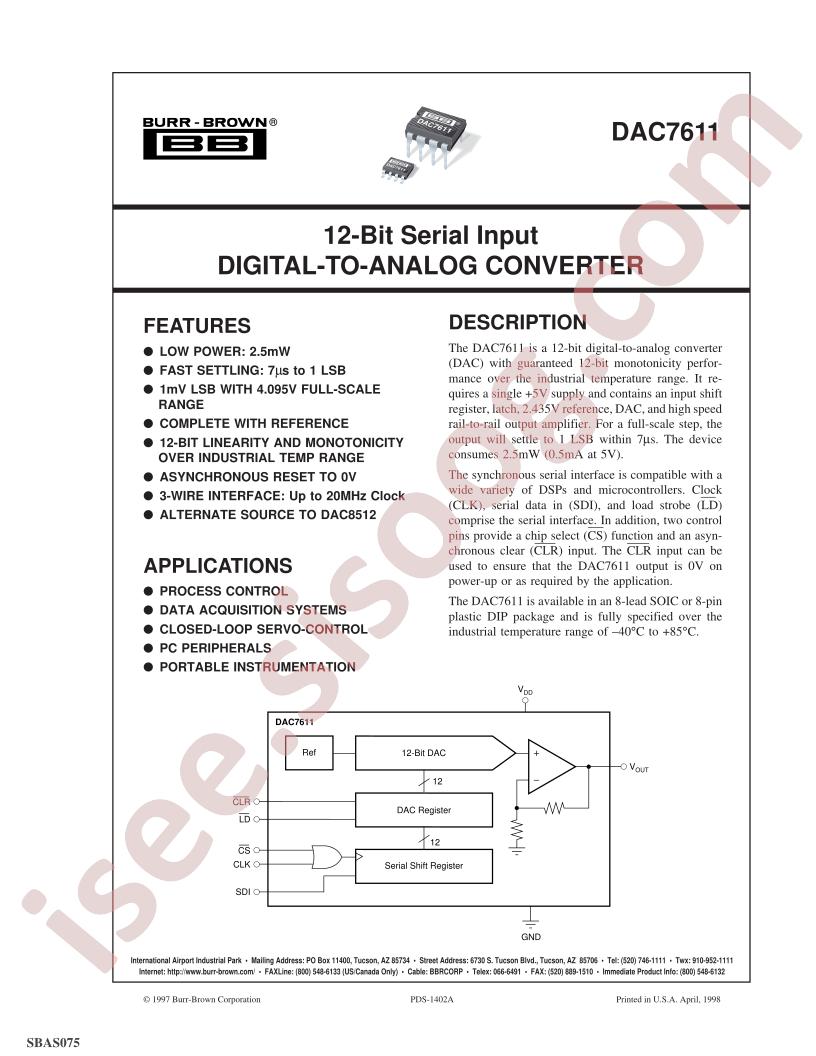

DAC7611UB/2K5G4 Datasheet

DAC7611

Datasheet specifications

Datasheet's name DAC7611
File size 322.994 KB
File type pdf
Number of pages 17

Download Datasheet DAC7611

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Series: -
  • Voltage - Supply, Digital: 5V
  • Voltage - Supply, Analog: 5V
  • INL/DNL (LSB): ±0.25, ±0.25
  • Supplier Device Package: 8-SOIC
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Number of Bits: 12
  • Differential Output: No
  • Part Status: Active
  • Reference Type: Internal
  • Settling Time: 7µs (Typ)
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C ~ 85°C
  • Architecture: R-2R
  • Manufacturer: Texas Instruments
  • Output Type: Voltage - Buffered
  • Number of D/A Converters: 1
  • Packaging: Tape & Reel (TR)
  • Base Part Number: DAC7611
  • Data Interface: SPI
  • detail: 12 Bit Digital to Analog Converter 1 8-SOIC
