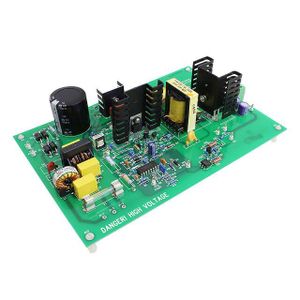

دیتاشیت UCC2580D-3G4

مشخصات دیتاشیت

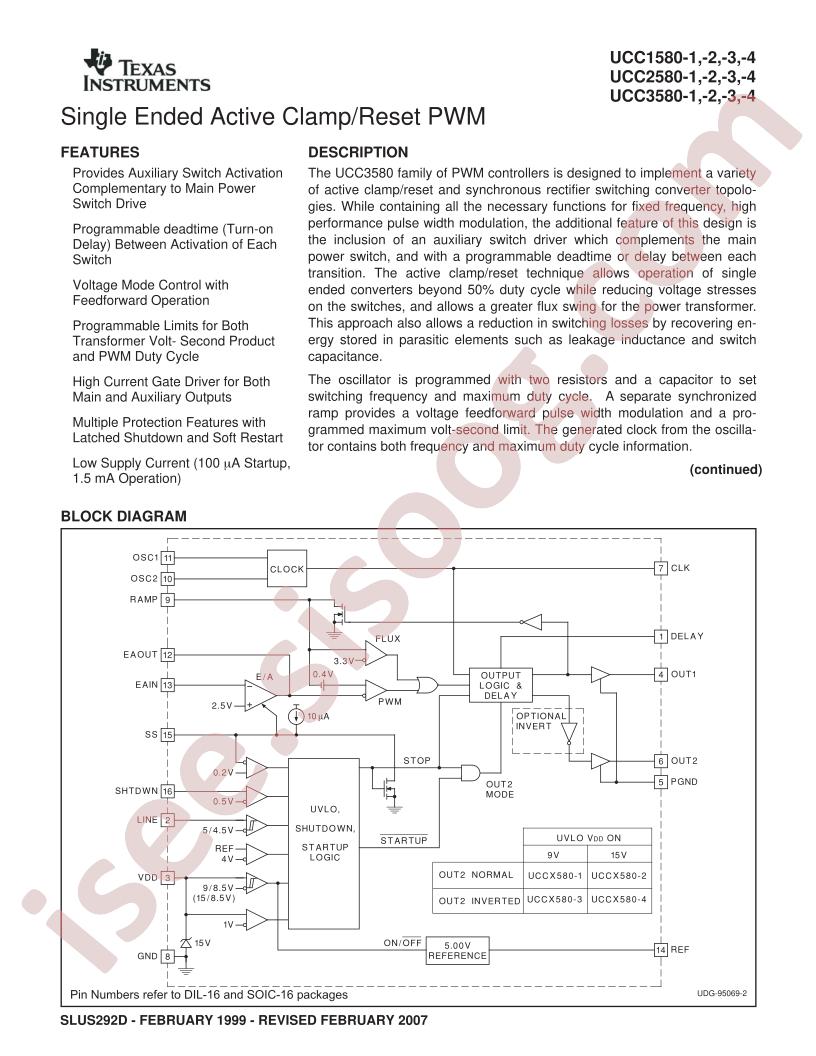

دانلود دیتاشیت UCC1580-84, UCC2580-84, UCC3580-84	UCC1580-84, UCC2580-84, UCC3580-84 Datasheet

RoHS: true
Category: Power Supply Chip/DC-DC Controllers
Function: Buck-boost type
Topology: Forward
Datasheet: Texas Instruments UCC2580D-3G4
Input Voltage: 8.5V~16V
Duty Cycle (Max): 66%
Number of Outputs: 2
Switching Frequency: 400kHz
Operating Temperature: -40°C~+85°C@(TA)
Synchronous Rectification: NO
Package: SOP-16
Manufacturer: Texas Instruments
Voltage - Supply (Vcc/Vdd): 8.5V ~ 16V
Base Part Number: UCC258
Package / Case: 16-SOIC (0.154", 3.90mm Width)
Output Configuration: Positive or Negative
Series: -
Supplier Device Package: 16-SOIC
Frequency - Switching: 400kHz
Part Status: Active
Mounting Type: Surface Mount
Control Features: Enable, Ramp, Soft Start
Clock Sync: No
Serial Interfaces: -
Packaging: Tube
Synchronous Rectifier: No
Output Type: Transistor Driver
Output Phases: 1
detail: Forward Converter Regulator Positive or Negative Output Step-Up/Step-Down DC-DC Controller IC 16-SOIC
