دیتاشیت ADP2503ACPZ-5.0-R7
مشخصات دیتاشیت
| نام دیتاشیت | ADP2503,04 |
|---|---|
| حجم فایل | 1578.018 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 16 |

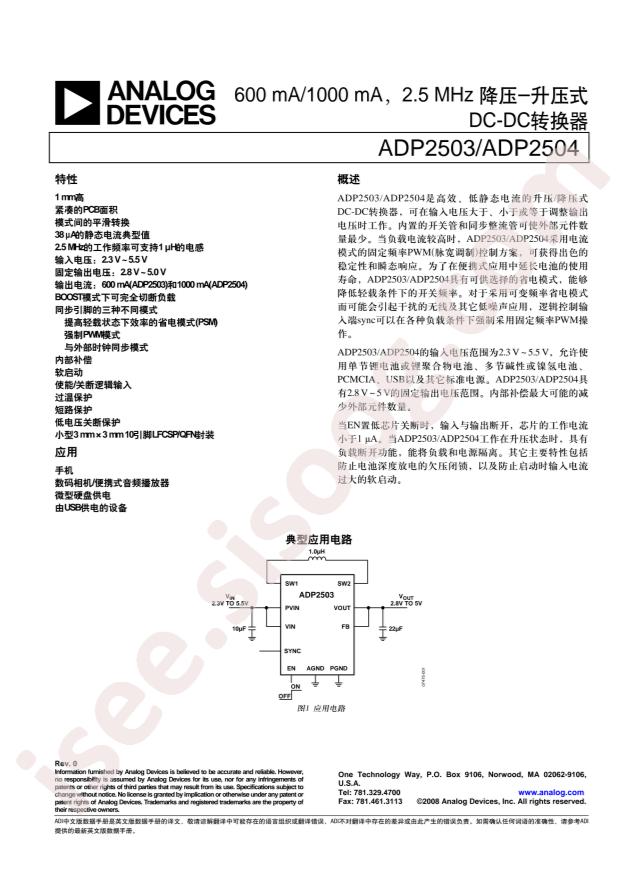

دانلود دیتاشیت ADP2503,04 |
ADP2503,04 Datasheet |
|---|
مشخصات
- Manufacturer: Analog Devices Inc.
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Function: Step-Up/Step-Down
- Output Configuration: Positive
- Topology: Buck-Boost
- Output Type: Fixed
- Number of Outputs: 1
- Voltage - Input (Min): 2.3V
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 5V
- Voltage - Output (Max): -
- Current - Output: 600mA
- Frequency - Switching: 2.5MHz
- Synchronous Rectifier: Yes
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-VFDFN Exposed Pad, CSP
- Supplier Device Package: 10-LFCSP-WD (3x3)
- Base Part Number: ADP2503
- detail: Buck-Boost Switching Regulator IC Positive Fixed 5V 1 Output 600mA 10-VFDFN Exposed Pad, CSP
