ADP5075ACBZ-R7 دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت ADP5075ACBZ-R7	دانلود دیتاشیت

ADP5075 19 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Buck-boost type
Topology: Step-down-Boost
Datasheet: Analog Devices ADP5075ACBZ-R7
Output Type: Adjustable
Input Voltage: 2.85V~15V
Number of Outputs: 1
Switching Frequency: 1.2MHz;2.4MHz
Output Current (Max): 800mA
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: NO
Package: WLCSP-12
Manufacturer: Analog Devices
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Output Configuration: Negative
Voltage - Input (Min): 2.85V
Voltage - Input (Max): 15V
Voltage - Output (Min/Fixed): Vin-39V
Voltage - Output (Max): -
Current - Output: 800mA
Frequency - Switching: 1.2MHz, 2.4MHz
Synchronous Rectifier: No
Mounting Type: Surface Mount

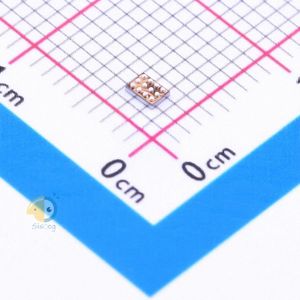

Package / Case: 12-WFBGA, WLCSP
Supplier Device Package: 12-WLCSP (1.61x2.18)
Base Part Number: ADP5075
detail: Buck-Boost Switching Regulator IC Negative Adjustable Vin-39V 1 Output 800mA 12-WFBGA, WLCSP
