دیتاشیت ADG1401BRMZ-REEL7
مشخصات دیتاشیت
| نام دیتاشیت | ADG1401,02 |
|---|---|
| حجم فایل | 451.401 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 16 |
دانلود دیتاشیت ADG1401,02 |

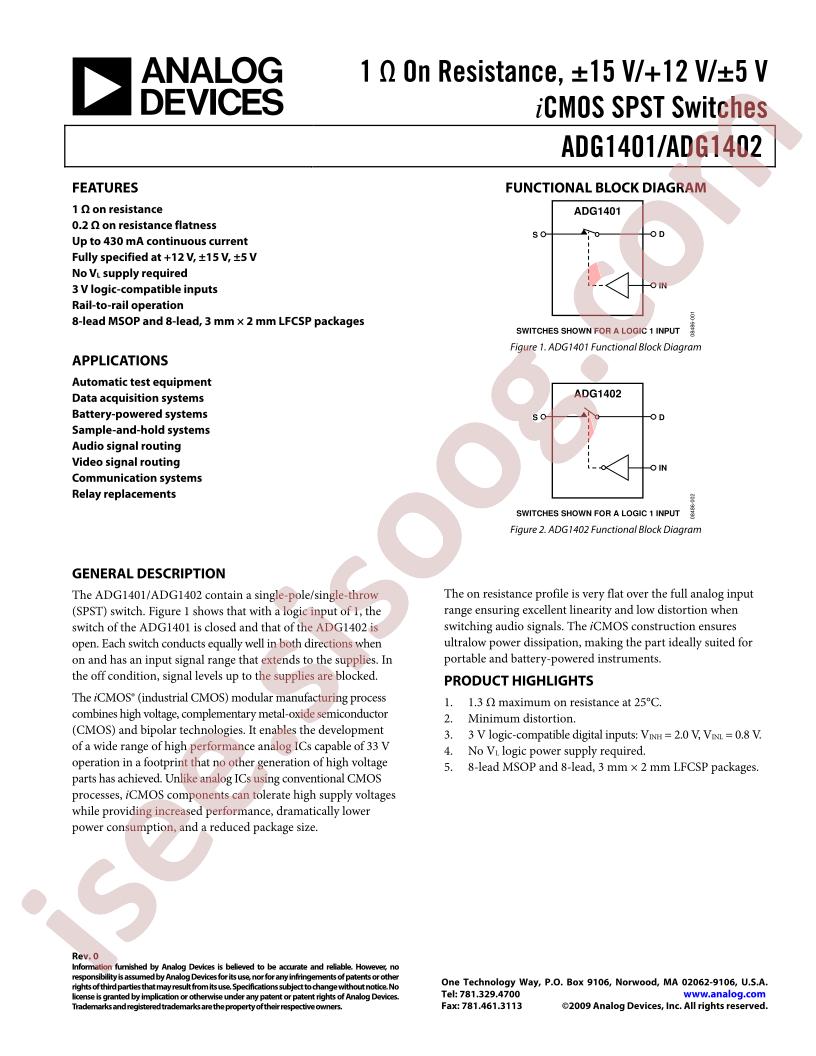

ADG1401,02 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet: Analog Devices ADG1401BRMZ-REEL7
- Turn-on time: 150ns
- Turn-off time: 150ns
- Supply Voltage: 5V~16.5V
- Switch Circuit: SPST(SPST)-Normal Open
- Number of Channels: 1
- On-State Resistance (Max): 1.3Ω
- Package: MSOP-8
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 1
- Channel-to-Channel Matching (ΔRon): 200mOhm
- Voltage - Supply, Single (V+): 5V ~ 16.5V
- Voltage - Supply, Dual (V±): ±4.5V ~ 16.5V
- Switch Time (Ton, Toff) (Max): 150ns, 150ns
- -3db Bandwidth: 120MHz
- Charge Injection: -12pC
- Channel Capacitance (CS(off), CD(off)): 36pF, 41pF
- Current - Leakage (IS(off)) (Max): 400pA
- Crosstalk: -
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Supplier Device Package: 8-MSOP
- Base Part Number: ADG1401
- detail: 1 Circuit IC Switch 1:1 1.3Ohm 8-MSOP
