دیتاشیت ADUM2250ARWZ-RL
مشخصات دیتاشیت
| نام دیتاشیت |

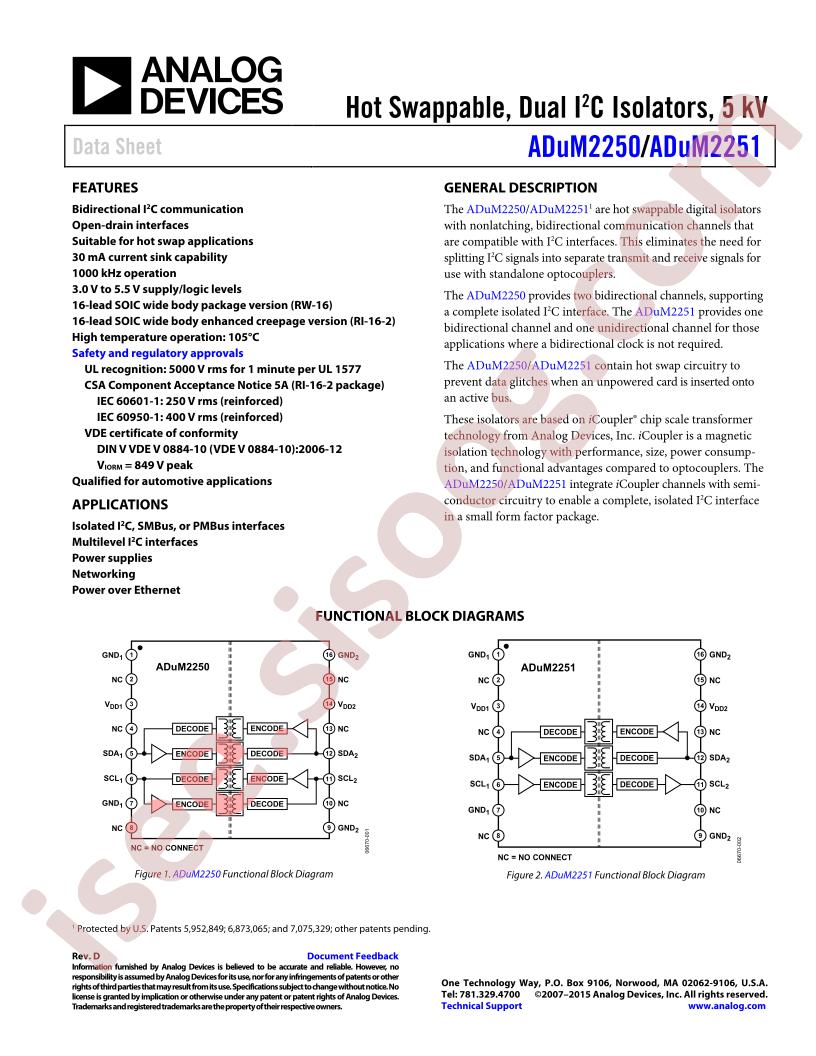

ADuM2250,2251
|
| حجم فایل |
370.136
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
16
|
مشخصات
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Digital Isolators
-
Data Rate:
1Mbps
-
Datasheet:
Analog Devices ADUM2250ARWZ-RL
-
Applications:
I2C
-
Supply Voltage:
3V~5.5V
-
Forward Channel:
2
-
Reverse channel:
2
-
Number of Channels:
2
-
Isolation Technology:
Magnetic isolation
-
Operating Temperature:
-40°C~+105°C
-
Voltage Isolation or Not:
Without voltage isolation
-
Package:
SOP-16-300mil
-
Manufacturer:
Analog Devices
-
Series:
iCoupler®
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Technology:
Magnetic Coupling
-
Type:
I²C
-
Isolated Power:
No
-
Inputs - Side 1/Side 2:
2/2
-
Channel Type:
Bidirectional
-
Voltage - Isolation:
5000Vrms
-
Common Mode Transient Immunity (Min):
25kV/µs
-
Propagation Delay tpLH / tpHL (Max):
-
-
Pulse Width Distortion (Max):
145ns, 85ns
-
Rise / Fall Time (Typ):
-
-
Voltage - Supply:
3V ~ 5.5V
-
Mounting Type:
Surface Mount
-
Package / Case:
16-SOIC (0.295", 7.50mm Width)
-
Supplier Device Package:
16-SOIC
-
Base Part Number:
ADUM2250
-
detail:
I²C Digital Isolator 5000Vrms 2 Channel 1Mbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
