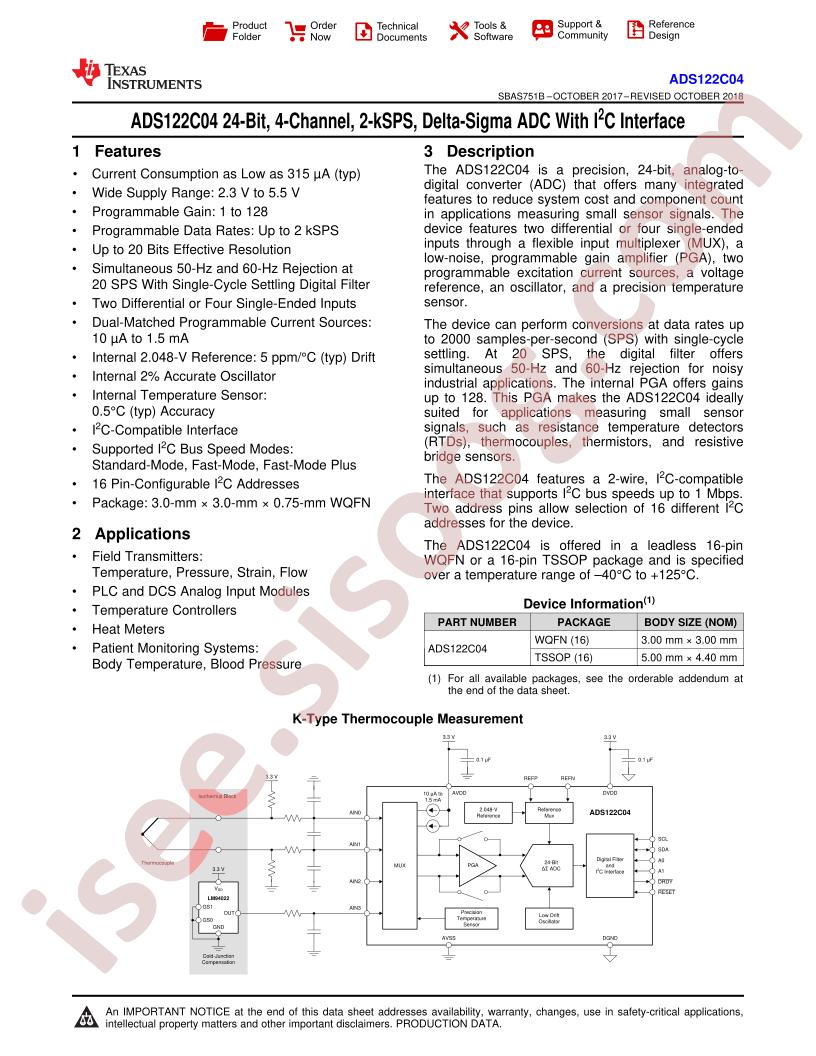

ADS122C04 Datasheet دیتاشیت

ADS122C04 Datasheet

مشخصات دیتاشیت

نام دیتاشیت ADS122C04 Datasheet
حجم فایل 2221.353 کیلوبایت
نوع فایل pdf
تعداد صفحات 76

دانلود دیتاشیت ADS122C04 Datasheet

دانلود دیتاشیت

سایر مستندات

ADS122C04IPWR 77 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Texas Instruments ADS122C04IRTER
  • Interface: I2C
  • resolution: 24
  • Supply Voltage: 2.3V~5.5V
  • number of channels: 4
  • sampling frequency: 2kHz
  • Operating Temperature: -40°C~+125°C
  • Package: QFN-16-EP(3x3)
  • Manufacturer: Texas Instruments
  • Configuration: MUX-PGA-ADC
  • Voltage - Supply, Analog: 2.3V ~ 5.5V
  • Base Part Number: ADS122
  • Voltage - Supply, Digital: 2.3V ~ 5.5V
  • Number of Bits: 24
  • Series: -
  • Package / Case: 16-WFQFN Exposed Pad
  • Packaging: Cut Tape (CT)
  • Supplier Device Package: 16-WQFN (3x3)
  • Number of Inputs: 4
  • Ratio - S/H:ADC: 0:1
  • Reference Type: Internal
  • Mounting Type: Surface Mount
  • Part Status: Active
  • Sampling Rate (Per Second): 2k
  • Number of A/D Converters: 1
  • Data Interface: I²C
  • Architecture: Sigma-Delta
  • Input Type: Differential, Single Ended
  • Features: PGA, Temperature Sensor
  • detail: 24 Bit Analog to Digital Converter 4 Input 1 Sigma-Delta 16-WQFN (3x3)
