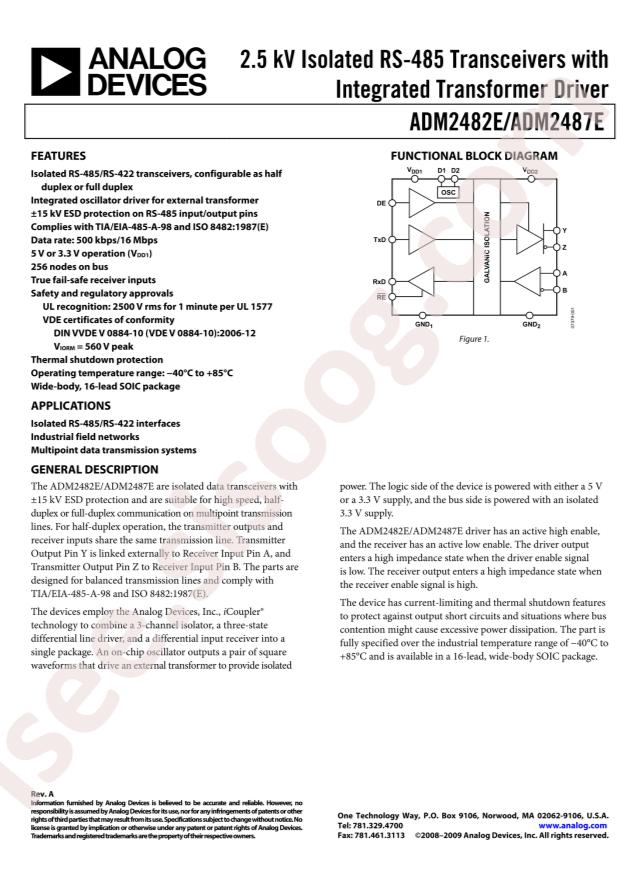

ADM2482EBRWZ دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
ADM2482EBRWZ
|
|
حجم فایل
|
97.641
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
20
|
مشخصات فنی
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Digital Isolators
-
Data Rate:
500Kbps
-
Datasheet:
Analog Devices ADM2487EBRWZ-REEL7
-
Applications:
RS422;RS485
-
Supply Voltage:
3.3V;5V
-
Forward Channel:
2
-
Reverse channel:
1
-
Number of Channels:
3
-
Isolation Technology:
Magnetic isolation
-
Operating Temperature:
-40°C~+85°C
-
Voltage Isolation or Not:
Without voltage isolation
-
Package:
SOP-16-300mil
-
Manufacturer:
Analog Devices
-
Series:
iCoupler®
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Technology:
Magnetic Coupling
-
Type:
RS422, RS485
-
Isolated Power:
No
-
Inputs - Side 1/Side 2:
2/1
-
Channel Type:
Unidirectional
-
Voltage - Isolation:
2500Vrms
-
Common Mode Transient Immunity (Min):
25kV/µs
-
Propagation Delay tpLH / tpHL (Max):
-
-
Pulse Width Distortion (Max):
-
-
Rise / Fall Time (Typ):
1.1µs, 1.1µs (Max)
-
Voltage - Supply:
3.3V, 5V
-
Mounting Type:
Surface Mount
-
Package / Case:
16-SOIC (0.295", 7.50mm Width)
-
Supplier Device Package:
16-SOIC
-
Base Part Number:
ADM2487
-
detail:
RS422, RS485 Digital Isolator 2500Vrms 3 Channel 500kbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
