دیتاشیت ADM2490EBRWZ-REEL7

مشخصات دیتاشیت

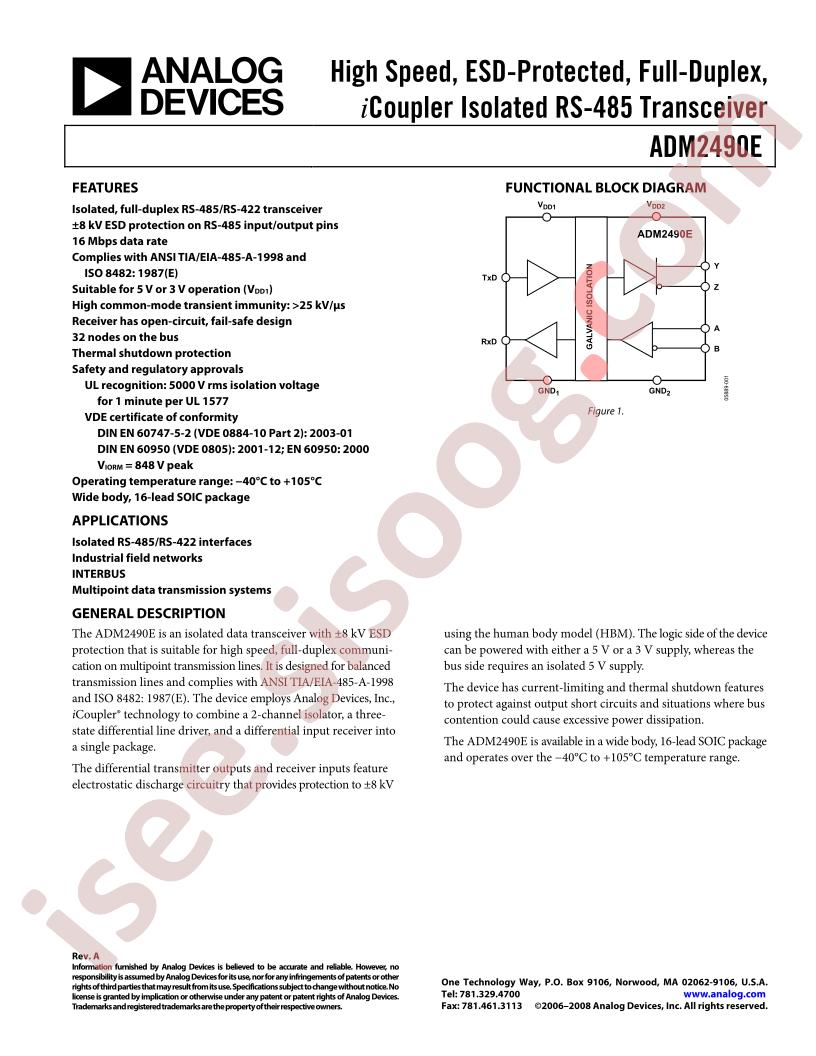

دانلود دیتاشیت ADM2490E	ADM2490E Datasheet

RoHS: true
Types: transceiver
Category: Communication Interface Chip/UART/485/232/RS-485/RS-422 ICs
Data Rate: 16Mbps
Datasheet: Analog Devices ADM2490EBRWZ-REEL7
Supply Voltage: 3V~5V
Driver/receiver: 1/1
Operating Temperature: -40°C~+105°C
Whether the isolation: NO
Package: SOP-16-300mil
Manufacturer: Analog Devices
Series: iCoupler®
Packaging: Cut Tape (CT)
Part Status: Active
Technology: Magnetic Coupling
Type: RS422, RS485
Isolated Power: No
Number of Channels: 2
Inputs - Side 1/Side 2: 1/1
Channel Type: Unidirectional
Voltage - Isolation: 5000Vrms
Common Mode Transient Immunity (Min): 25kV/µs
Propagation Delay tpLH / tpHL (Max): 60ns, 60ns
Pulse Width Distortion (Max): -
Rise / Fall Time (Typ): -
Voltage - Supply: 3V, 5V
Mounting Type: Surface Mount
Package / Case: 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package: 16-SOIC
Base Part Number: ADM2490
detail: RS422, RS485 Digital Isolator 5000Vrms 2 Channel 16Mbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
