دیتاشیت AD8253ARMZ-R7

AD8253

مشخصات دیتاشیت

نام دیتاشیت AD8253
حجم فایل 426.031 کیلوبایت
نوع فایل pdf
تعداد صفحات 24

دانلود دیتاشیت AD8253

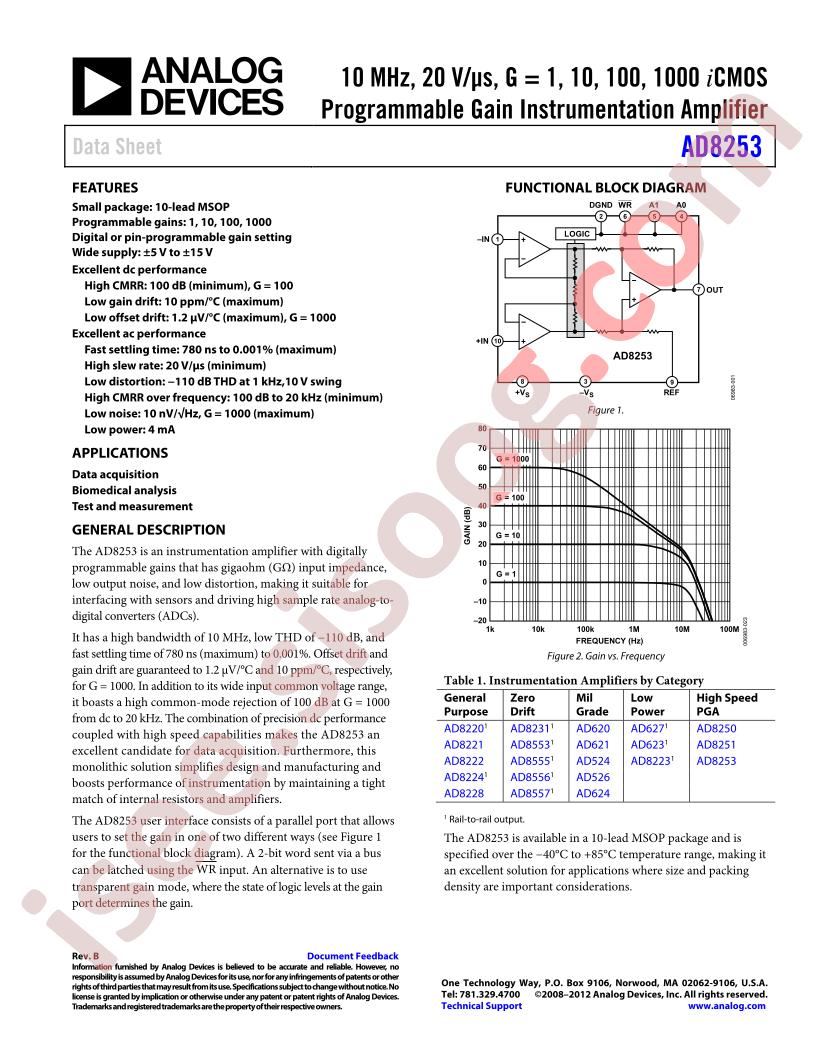

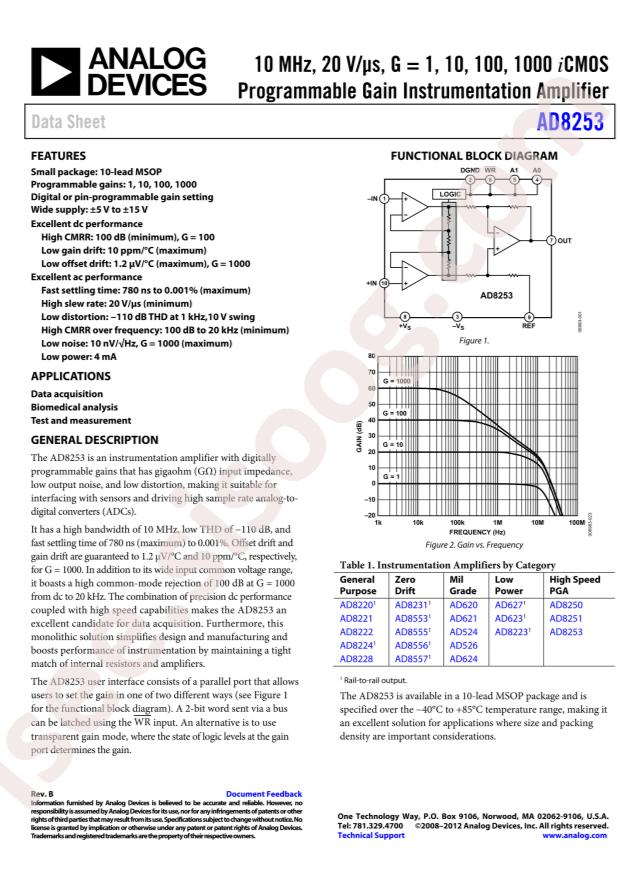

AD8253 Datasheet

مشخصات

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Instrumentation OpAmps
  • Datasheet: Analog Devices AD8253ARMZ-R7
  • -3db Bandwidth: 10MHz
  • Number of Circuits: 1
  • Operating Temperature: -40°C~+85°C
  • Current - Input Bias(Ib): 5nA
  • Gain Bandwidth Product(GBP): -
  • Voltage - Input Offset(Vos): 150uV
  • Package: MSOP-10
  • Manufacturer: Analog Devices
  • Series: iCMOS®
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Amplifier Type: Instrumentation
  • Output Type: -
  • Slew Rate: 20V/µs
  • Current - Input Bias: 5nA
  • Voltage - Input Offset: 150µV
  • Current - Supply: 4.6mA
  • Current - Output / Channel: 37mA
  • Voltage - Supply, Single/Dual (±): ±5V ~ 15V
  • Mounting Type: Surface Mount
  • Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
  • Supplier Device Package: 10-MSOP
  • Base Part Number: AD8253
  • detail: Instrumentation Amplifier 1 Circuit 10-MSOP
