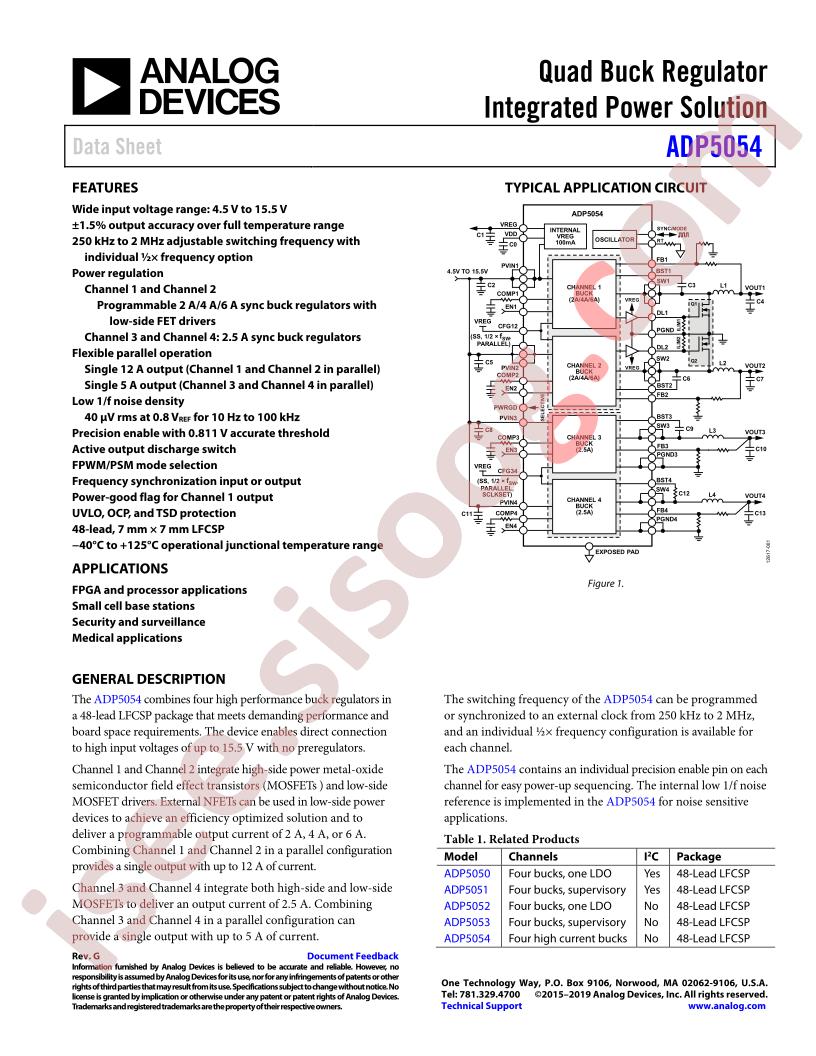

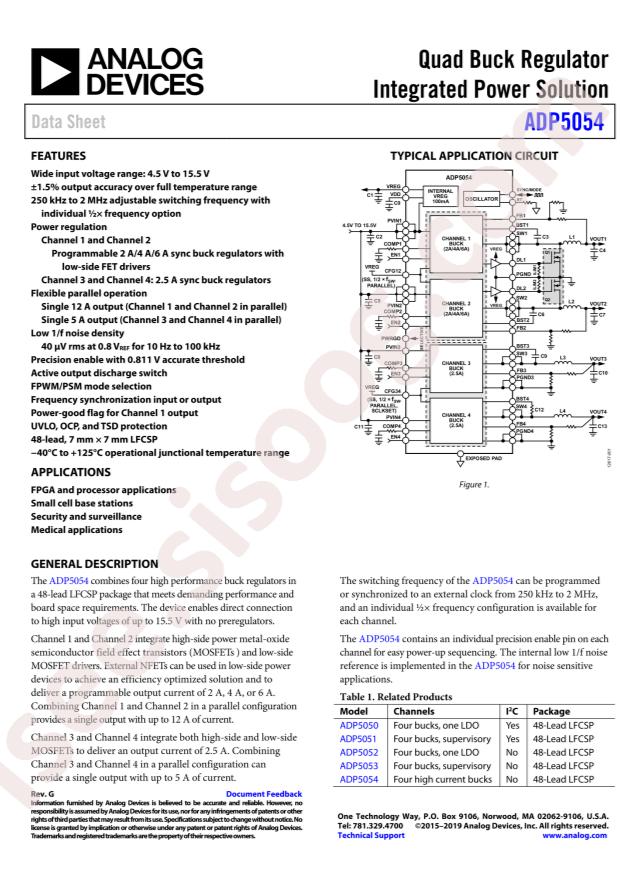

دیتاشیت ADP5054ACPZ-R7
مشخصات دیتاشیت
| نام دیتاشیت |
ADP5054
|
| حجم فایل |
656.759
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
31
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Controllers
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:
Analog Devices ADP5054ACPZ-R7
-
Input Voltage:
4.5V~15.5V
-
Output Voltage:
-
-
Duty Cycle (Max):
50%
-
Number of Outputs:
4
-
Switching Frequency:
600kHz
-
Output Current (Max):
-
-
Operating Temperature:
-40°C~+125°C@(TJ)
-
Quiescent Current (Iq):
-
-
Synchronous Rectification:
Yes
-
Package:
LFCSP-48
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Type:
Transistor Driver
-
Output Configuration:
Positive
-
Output Phases:
2
-
Voltage - Supply (Vcc/Vdd):
4.5V ~ 15.5V
-
Frequency - Switching:
250kHz ~ 2MHz
-
Synchronous Rectifier:
Yes
-
Clock Sync:
Yes
-
Serial Interfaces:
-
-
Control Features:
Enable, Frequency Control, Power Good
-
Mounting Type:
Surface Mount
-
Package / Case:
48-WFQFN Exposed Pad, CSP
-
Supplier Device Package:
48-LFCSP (7x7)
-
Base Part Number:
ADP5054
-
detail:
Buck Regulator Positive Output Step-Down DC-DC Controller IC 48-LFCSP (7x7)
