- Datasheet AD7768-4BSTZ-RL

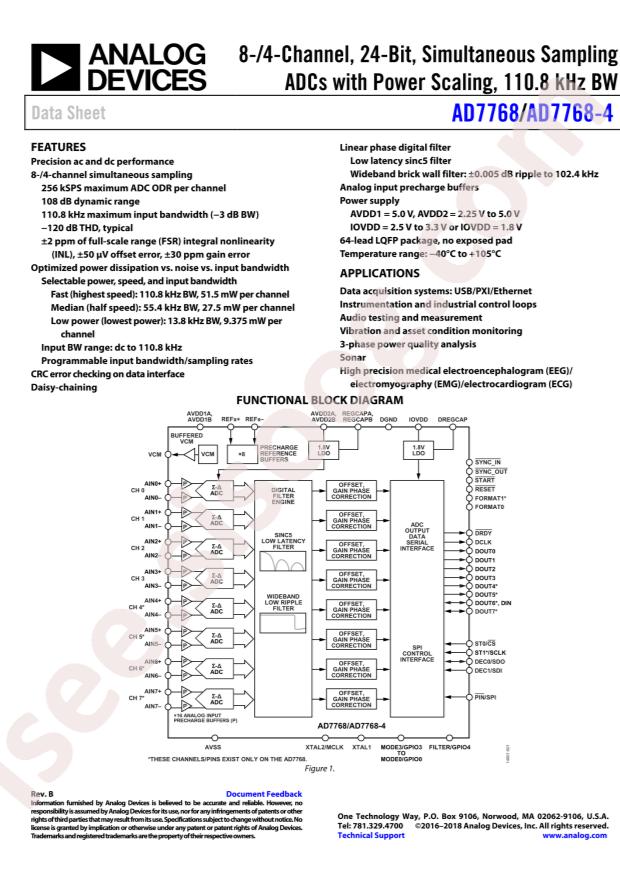

AD7768-4BSTZ-RL Datasheet
Datasheet specifications
| Datasheet's name | AD7768-4BSTZ-RL |
|---|---|
| File size | 102.981 KB |
| File type | |
| Number of pages | 105 |
Download Datasheet AD7768-4BSTZ-RL |
Download Datasheet |
|---|
Other documentations

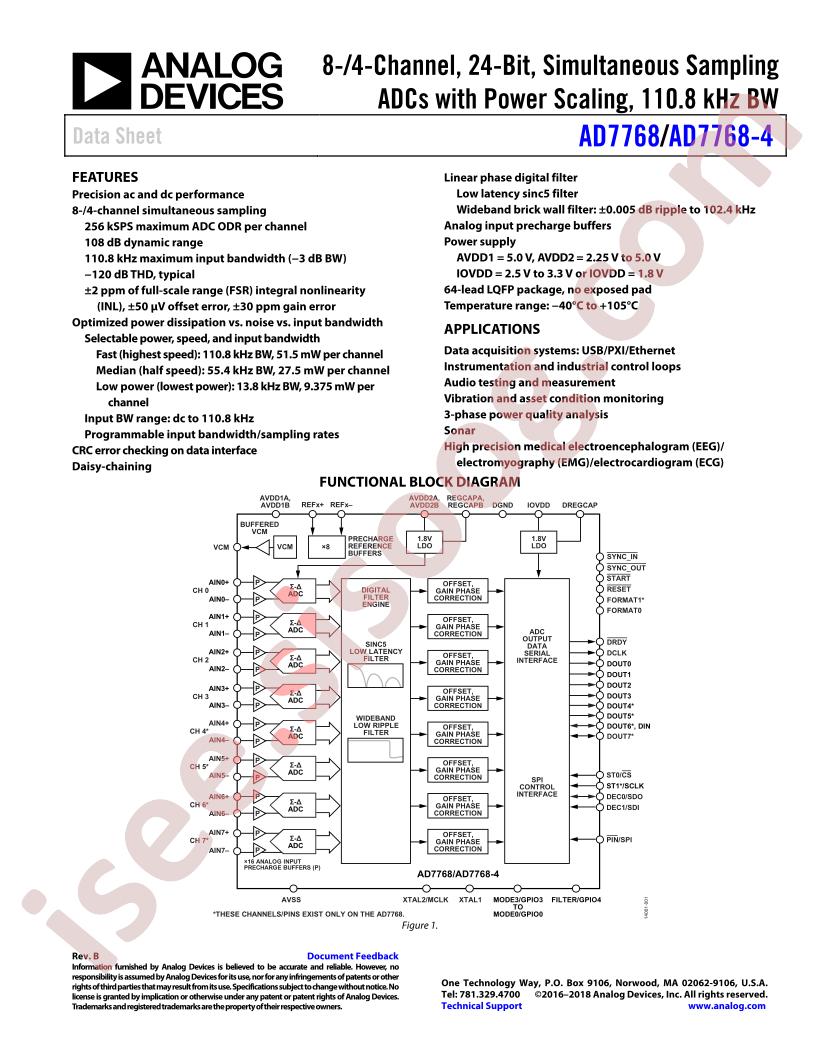

AD7768,68-4 105 pages
Technical specifications
- RoHS: true
- Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
- Datasheet: Analog Devices AD7768-4BSTZ-RL
- Interface: SPI
- resolution: 24Bit
- Supply Voltage: 2V~5.5V
- differential input: Yes
- number of channels: 4
- sampling frequency: 256kHz
- Operating Temperature: -40°C~+105°C
- Package: LQFP-64(10x10)
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Number of Bits: 24
- Sampling Rate (Per Second): 256k
- Number of Inputs: 4
- Input Type: Differential
- Data Interface: SPI
- Configuration: ADC
- Ratio - S/H:ADC: -
- Number of A/D Converters: 4
- Architecture: Sigma-Delta
- Reference Type: External
- Voltage - Supply, Analog: 2V ~ 5.5V
- Voltage - Supply, Digital: -
- Features: Simultaneous Sampling
- Package / Case: 64-LQFP
- Supplier Device Package: 64-LQFP (10x10)
- Mounting Type: Surface Mount
- Base Part Number: AD7768
- detail: 24 Bit Analog to Digital Converter 4 Input 4 Sigma-Delta 64-LQFP (10x10)
