دیتاشیت ADUM1250ARZ-RL7

مشخصات دیتاشیت

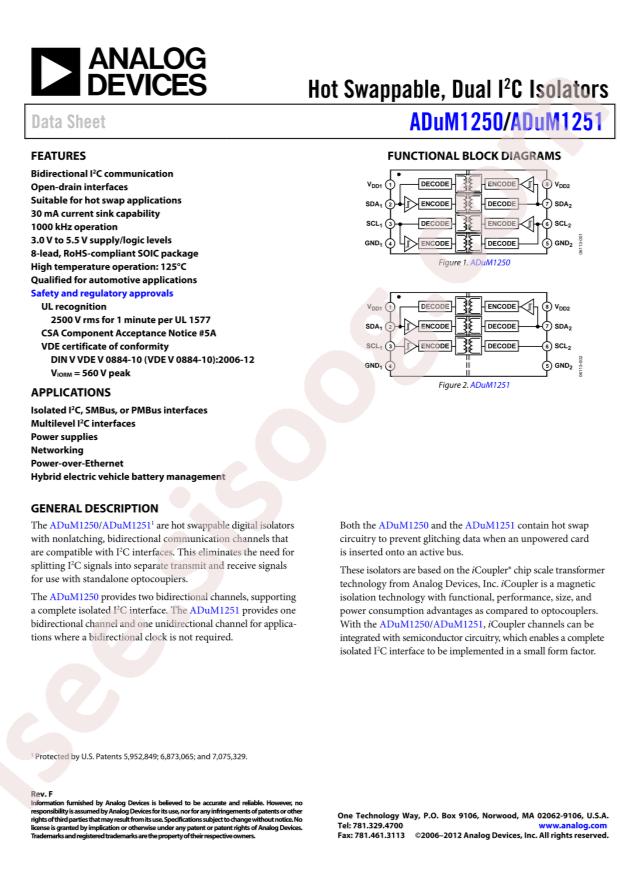

دانلود دیتاشیت ADUM1250,51 Datasheet	ADUM1250,51 Datasheet Datasheet

RoHS: true
Category: Communication Interface Chip/UART/485/232/Digital Isolators
Data Rate: 1Mbps
Datasheet: Analog Devices ADUM1250ARZ-RL7
Applications: I2C
Supply Voltage: 3V~5.5V
Forward Channel: 2
Reverse channel: 2
Number of Channels: 2
Isolation Technology: Magnetic isolation
Operating Temperature: -40°C~+105°C
Voltage Isolation or Not: 带电压隔离
Package: SOP-8
Manufacturer: Analog Devices
Series: iCoupler®
Packaging: Cut Tape (CT)
Part Status: Active
Technology: Magnetic Coupling
Type: I²C
Isolated Power: No
Inputs - Side 1/Side 2: 2/2
Channel Type: Bidirectional
Voltage - Isolation: 2500Vrms
Common Mode Transient Immunity (Min): 25kV/µs
Propagation Delay tpLH / tpHL (Max): -
Pulse Width Distortion (Max): 145ns, 85ns
Rise / Fall Time (Typ): -
Voltage - Supply: 3V ~ 5.5V
Mounting Type: Surface Mount
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 8-SOIC
Base Part Number: ADUM1250
detail: I²C Digital Isolator 2500Vrms 2 Channel 1Mbps 25kV/µs CMTI 8-SOIC (0.154", 3.90mm Width)
