دیتاشیت ADG5409BCPZ-REEL7
مشخصات دیتاشیت
| نام دیتاشیت | ADG5408/09 |
|---|---|
| حجم فایل | 413.45 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 24 |
دانلود دیتاشیت ADG5408/09 |

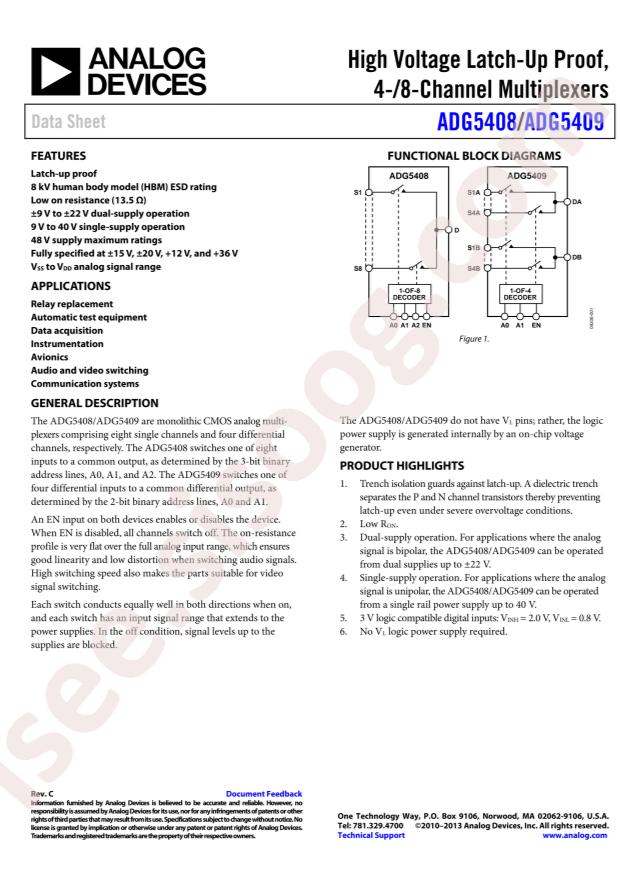

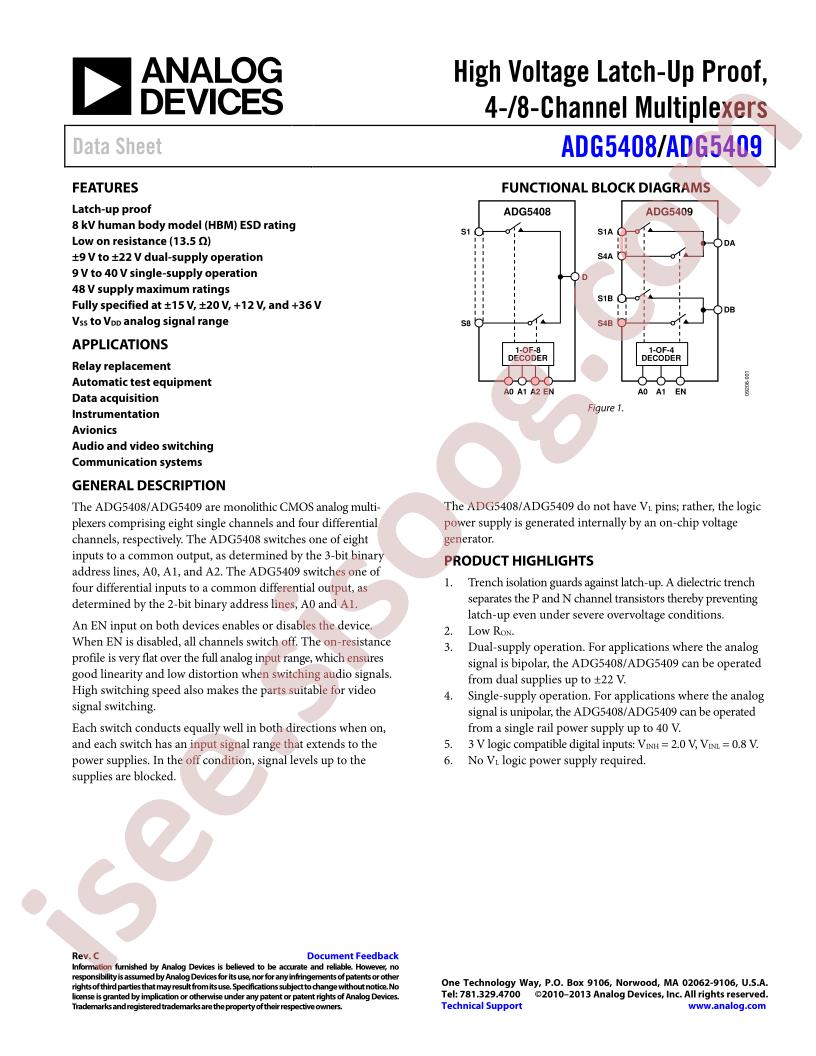

ADG5408/09 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet: Analog Devices ADG5409BCPZ-REEL7
- Turn-on time: 165ns
- Turn-off time: 153ns
- Supply Voltage: 9V~40V
- Switch Circuit: 单刀四掷(SP4T)
- Number of Channels: 2
- On-State Resistance (Max): 14Ω
- Package: LFCSP-16
- Manufacturer: Analog Devices
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- Channel-to-Channel Matching (ΔRon): 300mOhm
- Voltage - Supply, Single (V+): 9V ~ 40V
- Voltage - Supply, Dual (V±): ±9V ~ 22V
- Switch Time (Ton, Toff) (Max): 165ns, 153ns
- -3db Bandwidth: 88MHz
- Charge Injection: 155pC
- Channel Capacitance (CS(off), CD(off)): 17pF, 48pF
- Current - Leakage (IS(off)) (Max): 250pA
- Crosstalk: -60dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-WQFN Exposed Pad, CSP
- Supplier Device Package: 16-LFCSP-WQ (4x4)
- Base Part Number: ADG5409
- detail: 2 Circuit IC Switch 4:1 14Ohm 16-LFCSP-WQ (4x4)
