AD7322BRUZ دیتاشیت

AD7322BRUZ

مشخصات دیتاشیت

نام دیتاشیت AD7322BRUZ
حجم فایل 109.781 کیلوبایت
نوع فایل pdf
تعداد صفحات 36

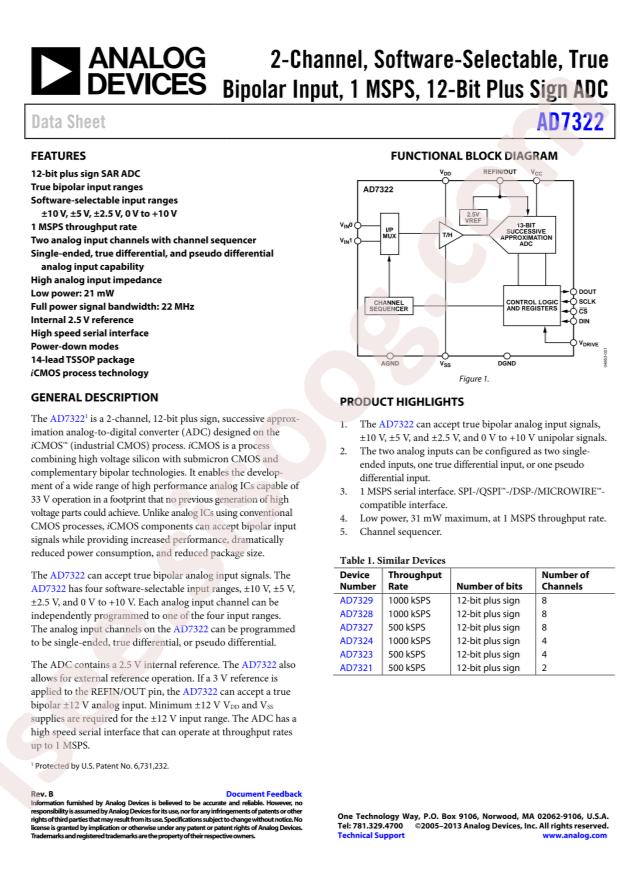

مشاهده دیتاشیت AD7322BRUZ

دانلود دیتاشیت

سایر مستندات

AD7322 36 pages

AD7322BRUZ 36 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Analog Devices AD7322BRUZ
  • Interface: SPI;DSP
  • resolution: 12Bit
  • Supply Voltage: 12V~16.5V
  • differential input: Yes
  • number of channels: 1;2
  • sampling frequency: 1MHz
  • Operating Temperature: -40°C~+85°C
  • Package: TSSOP-14
  • Manufacturer: Analog Devices
  • Series: iCMOS®
  • Packaging: Tube
  • Part Status: Active
  • Number of Bits: 12
  • Sampling Rate (Per Second): 1M
  • Number of Inputs: 1, 2
  • Input Type: Differential, Pseudo-Differential, Single Ended
  • Data Interface: SPI, DSP
  • Configuration: MUX-S/H-ADC
  • Ratio - S/H:ADC: 1:1
  • Number of A/D Converters: 1
  • Architecture: SAR
  • Reference Type: External, Internal
  • Voltage - Supply, Analog: ±12V ~ 16.5V
  • Voltage - Supply, Digital: 2.7V ~ 5.25V
  • Features: True Bipolar
  • Package / Case: 14-TSSOP (0.173", 4.40mm Width)
  • Supplier Device Package: 14-TSSOP
  • Mounting Type: Surface Mount
  • Base Part Number: AD7322
  • detail: 12 Bit Analog to Digital Converter 1, 2 Input 1 SAR 14-TSSOP
