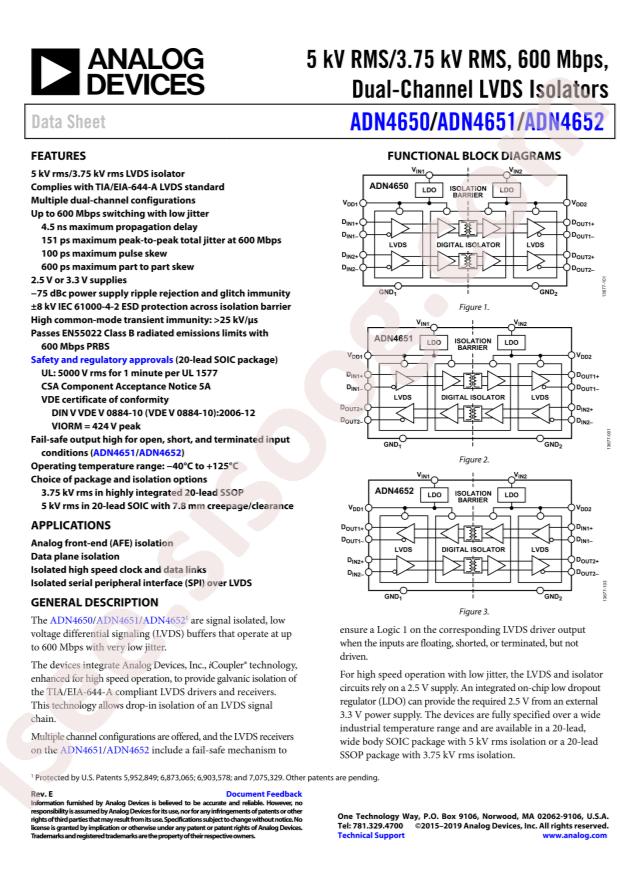

ADN4650BRWZ-RL7 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
ADN4650BRWZ-RL7
|
|
حجم فایل
|
124.733
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
25
|
مشخصات فنی
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Digital Isolators
-
Datasheet:
Analog Devices ADN4650BRWZ-RL7
-
Applications:
-
-
Isolation Technology:
-
-
Voltage Isolation or Not:
-
-
Package:
SOP-20-300mil
-
Manufacturer:
Analog Devices
-
Series:
iCoupler®
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Technology:
Magnetic Coupling
-
Type:
LVDS
-
Isolated Power:
No
-
Number of Channels:
2
-
Inputs - Side 1/Side 2:
2/0
-
Channel Type:
Unidirectional
-
Voltage - Isolation:
5000Vrms
-
Common Mode Transient Immunity (Min):
25kV/µs
-
Data Rate:
600Mbps
-
Propagation Delay tpLH / tpHL (Max):
4.5ns, 4.5ns
-
Pulse Width Distortion (Max):
-
-
Rise / Fall Time (Typ):
350ps, 350ps (Max)
-
Voltage - Supply:
2.375V ~ 2.625V
-
Operating Temperature:
-40°C ~ 125°C
-
Mounting Type:
Surface Mount
-
Package / Case:
20-SOIC (0.295", 7.50mm Width)
-
Supplier Device Package:
20-SOIC
-
Base Part Number:
ADN4650
-
detail:
LVDS Digital Isolator 5000Vrms 2 Channel 600Mbps 25kV/µs CMTI 20-SOIC (0.295", 7.50mm Width)
