دیتاشیت AD780BRZ-REEL7

AD780

مشخصات دیتاشیت

نام دیتاشیت AD780
حجم فایل 295.308 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

دانلود دیتاشیت AD780

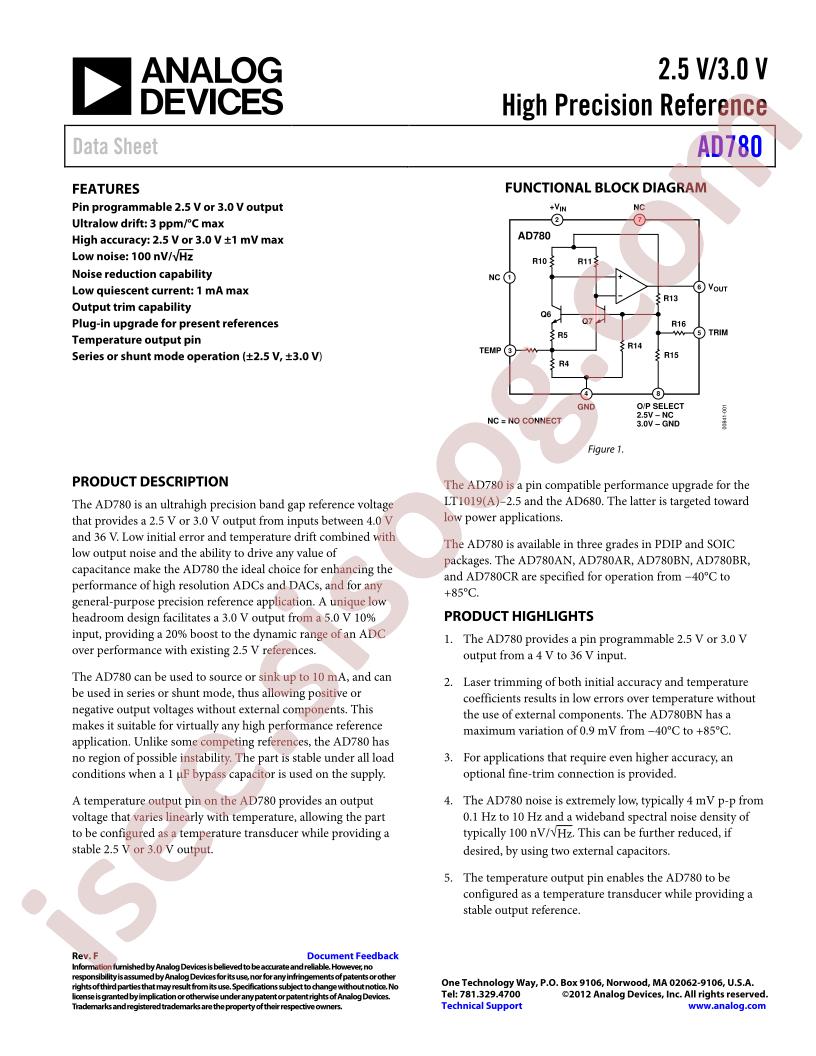

AD780 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Voltage References
  • Datasheet: Analog Devices AD780BRZ-REEL7
  • Tolerance: ±0.04%;±0.03%
  • Output Type: Programmable
  • Input Voltage: 4V~36V
  • Output Current: 10mA
  • Output Voltage: 2.5V;3V
  • Reference Type: series connection;parallel connection
  • Supply Current: 1mA
  • Operating Temperature: -40°C~+85°C@(Ta)
  • Temperature Coefficient: 3ppm/°C
  • Package: SOIC-8
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Voltage - Output (Min/Fixed): ±2.5V, ±3V
  • Current - Output: 10mA
  • Noise - 0.1Hz to 10Hz: 4µVp-p
  • Noise - 10Hz to 10kHz: -
  • Voltage - Input: 4V ~ 36V
  • Current - Supply: 1mA
  • Current - Cathode: 1mA
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: AD780
  • detail: Series, Shunt Voltage Reference IC ±0.04%, ±0.03% 8-SOIC
