ADM2682EBRIZ 数据手册
其他文档

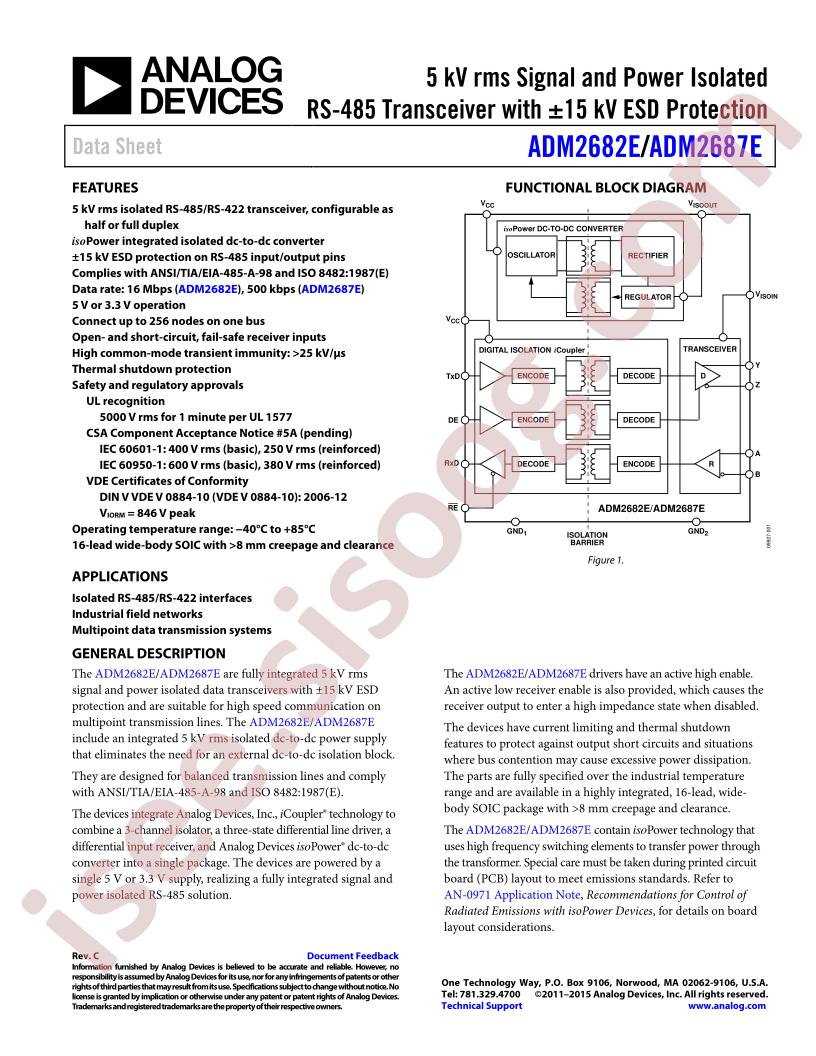

ADM2682E,87E 24 pages
技术规格
- RoHS: true
- Types: transceiver
- Category: Communication Interface Chip/UART/485/232/RS-485/RS-422 ICs
- Data Rate: 500Kbps
- Datasheet: Analog Devices ADM2687EBRIZ-RL7
- Supply Voltage: 3.3V~5V
- Driver/receiver: 1/1
- Package: SOP-16-300mil
- Manufacturer: Analog Devices
- Series: isoPower®
- Packaging: Cut Tape (CT)
- Part Status: Active
- Technology: Magnetic Coupling
- Type: RS422, RS485
- Isolated Power: Yes
- Number of Channels: 3
- Inputs - Side 1/Side 2: 2/1
- Channel Type: Unidirectional
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 25kV/µs
- Propagation Delay tpLH / tpHL (Max): 700ns, 700ns
- Pulse Width Distortion (Max): -
- Rise / Fall Time (Typ): 1.1µs, 1.1µs (Max)
- Voltage - Supply: 3.3V, 5V
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 16-SOIC-IC
- Base Part Number: ADM2687
- detail: RS422, RS485 Digital Isolator 5000Vrms 3 Channel 500kbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
