دیتاشیت ADUM3482ARSZ-RL7
مشخصات دیتاشیت
| نام دیتاشیت |

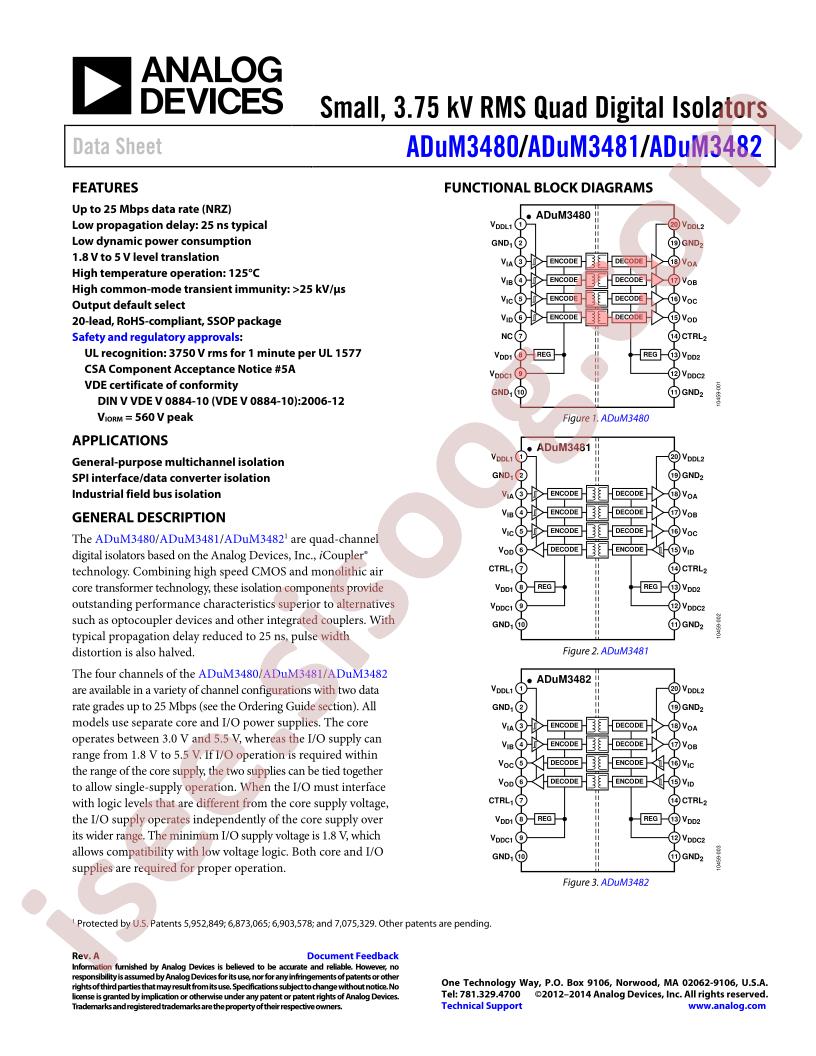

ADuM3480-82
|
| حجم فایل |
374.703
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
20
|
مشخصات
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Digital Isolators
-
Data Rate:
1Mbps
-
Datasheet:
Analog Devices ADUM3482ARSZ-RL7
-
Applications:
General-purpose
-
Supply Voltage:
1.8V~5.5V;3V~5.5V
-
Forward Channel:
2
-
Reverse channel:
2
-
Number of Channels:
4
-
Isolation Technology:
Magnetic isolation
-
Operating Temperature:
-40°C~+125°C
-
Voltage Isolation or Not:
Without voltage isolation
-
Package:
SSOP-20-208mil
-
Manufacturer:
Analog Devices
-
Series:
iCoupler®
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Technology:
Magnetic Coupling
-
Type:
General Purpose
-
Isolated Power:
No
-
Inputs - Side 1/Side 2:
2/2
-
Channel Type:
Unidirectional
-
Voltage - Isolation:
3750Vrms
-
Common Mode Transient Immunity (Min):
25kV/µs
-
Propagation Delay tpLH / tpHL (Max):
90ns, 90ns
-
Pulse Width Distortion (Max):
6ns
-
Rise / Fall Time (Typ):
2.5ns, 2.5ns
-
Voltage - Supply:
1.8V ~ 5.5V, 3V ~ 5.5V
-
Mounting Type:
Surface Mount
-
Package / Case:
20-SSOP (0.209", 5.30mm Width)
-
Supplier Device Package:
20-SSOP
-
Base Part Number:
ADUM3482
-
detail:
General Purpose Digital Isolator 3750Vrms 4 Channel 1Mbps 25kV/µs CMTI 20-SSOP (0.209", 5.30mm Width)
